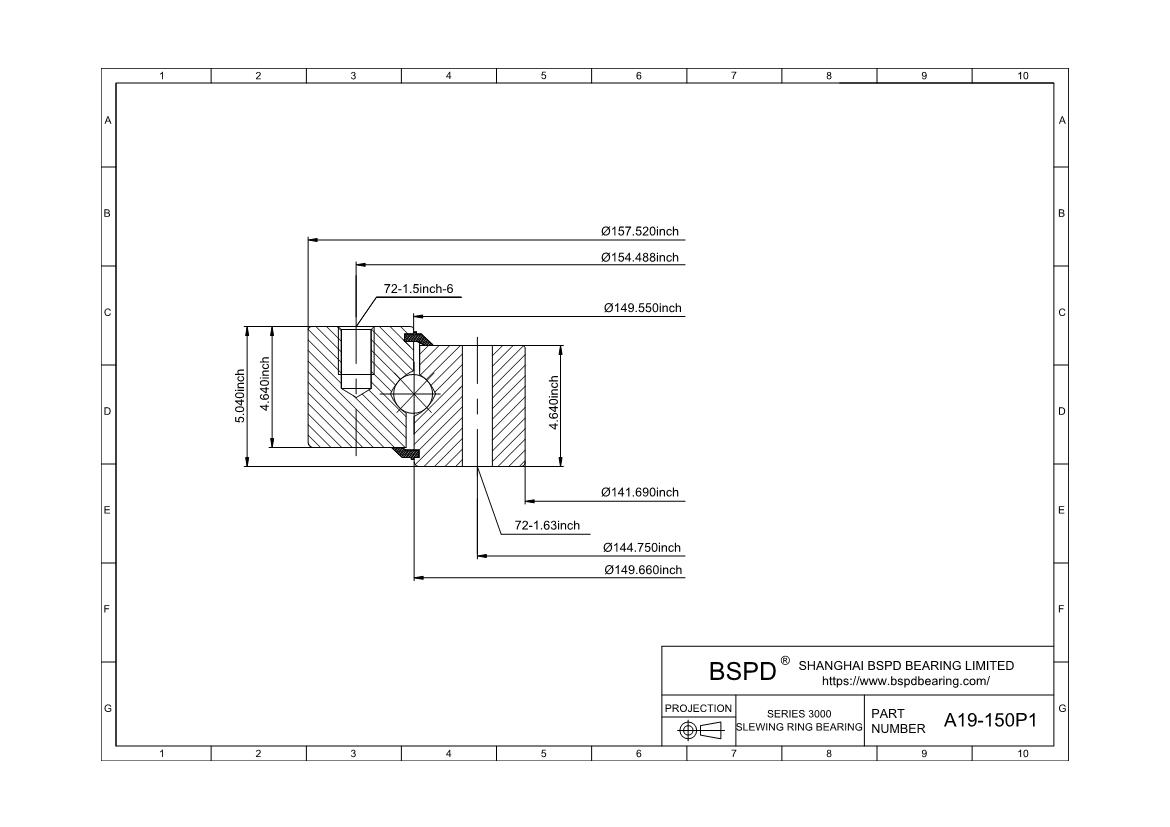

A19-150P1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 141.69"； Outer Diameter: 157.52"； Width (Thickness): 5.04";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A19-150P1 |
| Raceway Moment (ft-lbs) | 16300000 |
| Compressive Thrust(lbs) | 5720000 |
| Weight(lbs) | 4295 |
| Outline Dimensions(inches) | |
| OD | 157.52 |
| ID | 141.69 |
| OE | - |
| OI | 149.55 |
| IO | 149.66 |
| HT | 5.04 |
| OH | 4.64 |
| IH | 4.64 |
| Mounting Holes | |
| OBC | 154.488 |
| OU | 1.5-6 |
| No of OBC Holes | 72 |
| IBC | 144.75 |
| IU | 1.63 |
| No of IBC Holes | 725 |
| Hole Figure Style | 4 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A19-150P1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
