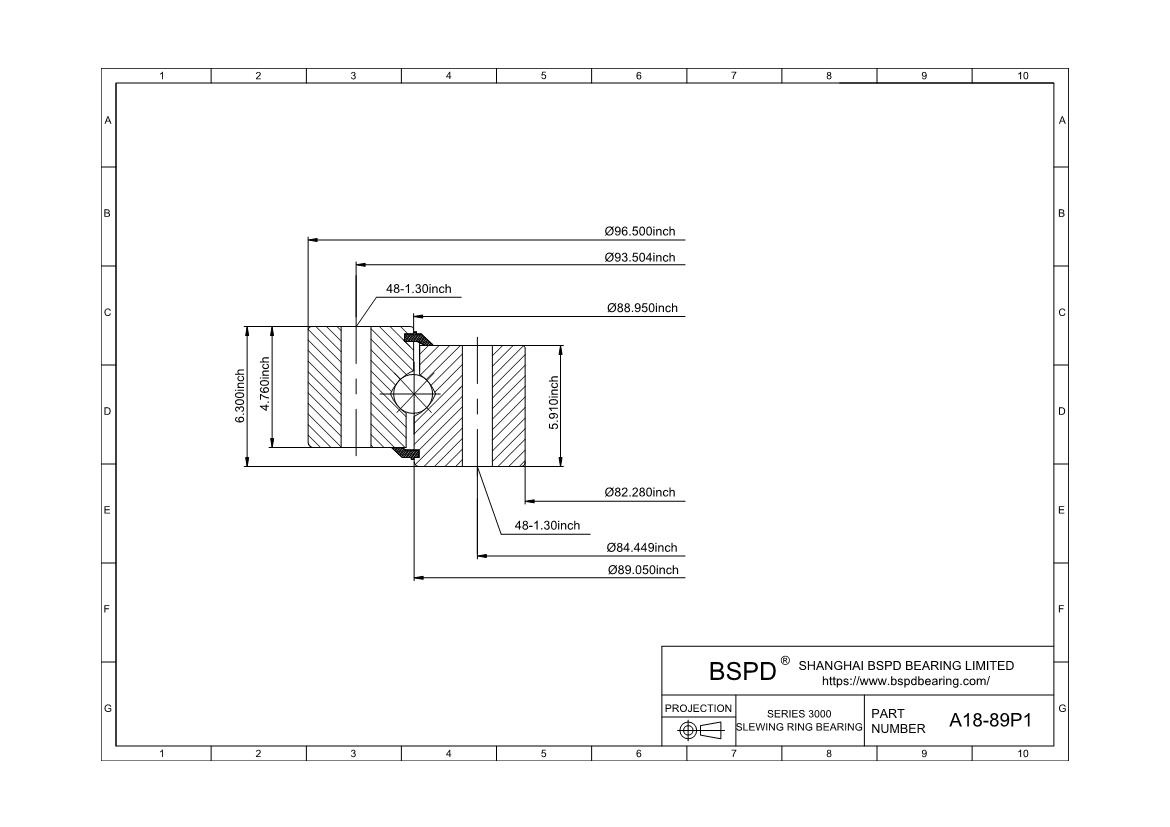

A18-89P1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 82.28"； Outer Diameter: 96.5"； Width (Thickness): 6.3";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A18-89P1 |
| Raceway Moment (ft-lbs) | 3440000 |
| Compressive Thrust(lbs) | 2030000 |
| Weight(lbs) | 2623 |
| Outline Dimensions(inches) | |
| OD | 96.5 |
| ID | 82.28 |
| OE | - |
| OI | 88.95 |
| IO | 89.05 |
| HT | 6.3 |
| OH | 4.76 |
| IH | 5.91 |
| Mounting Holes | |
| OBC | 93.504 |
| OU | 1.3 |
| No of OBC Holes | 48 |
| IBC | 84.449 |
| IU | 1.3 |
| No of IBC Holes | 48 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
