A18-80E1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 69.5"； Outer Diameter: 91.199"； Width (Thickness): 7";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A18-80E1 |
| Raceway Moment (ft-lbs) | 4570000 |
| Compressive Thrust(lbs) | 3010000 |
| Weight(lbs) | 4806 |

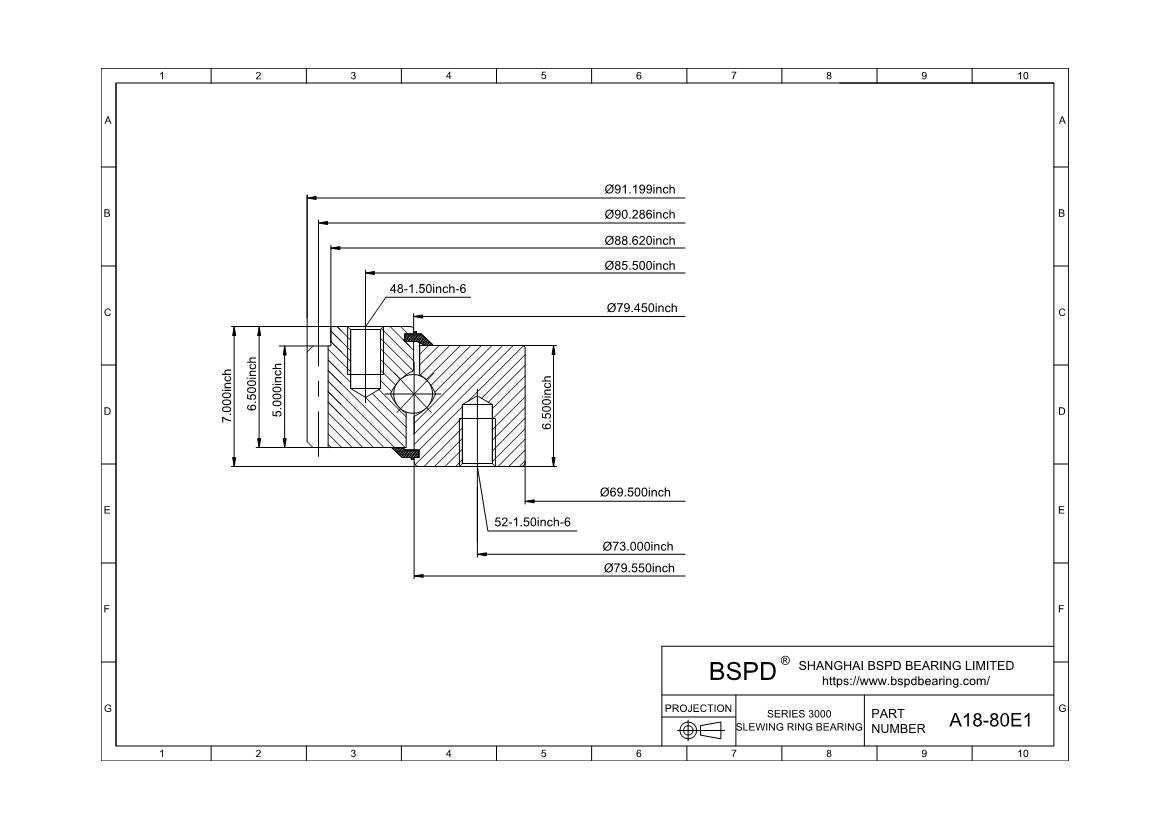

| Outline Dimensions(inches) | |
| OD | 91.199 |
| ID | 69.5 |
| OE | 88.62 |
| OI | 79.45 |
| IO | 79.55 |
| HT | 7 |
| OH | 6.5 |
| IH | 6.5 |
| Mounting Holes | |
| OBC | 85.5 |
| OU | 1.5-6 |
| No of OBC Holes | 48 |
| IBC | 73 |
| IU | 1.5-6 |
| No of IBC Holes | 52-1 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 90.286 |
| DP | 1.75 |
| NO of Teeth | 158 |
| Tooth From | 20d,Stub |
| F | 5 |
| Tangential Gear Capacity(lbs) | 55000 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A18-80E1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
