A18-60P1B
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 54.0"； Outer Diameter: 66.63"； Width (Thickness): 5.63";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A18-60P1B |
| Raceway Moment (ft-lbs) | 1570000 |
| Compressive Thrust(lbs) | 1360000 |
| Weight(lbs) | 1593 |

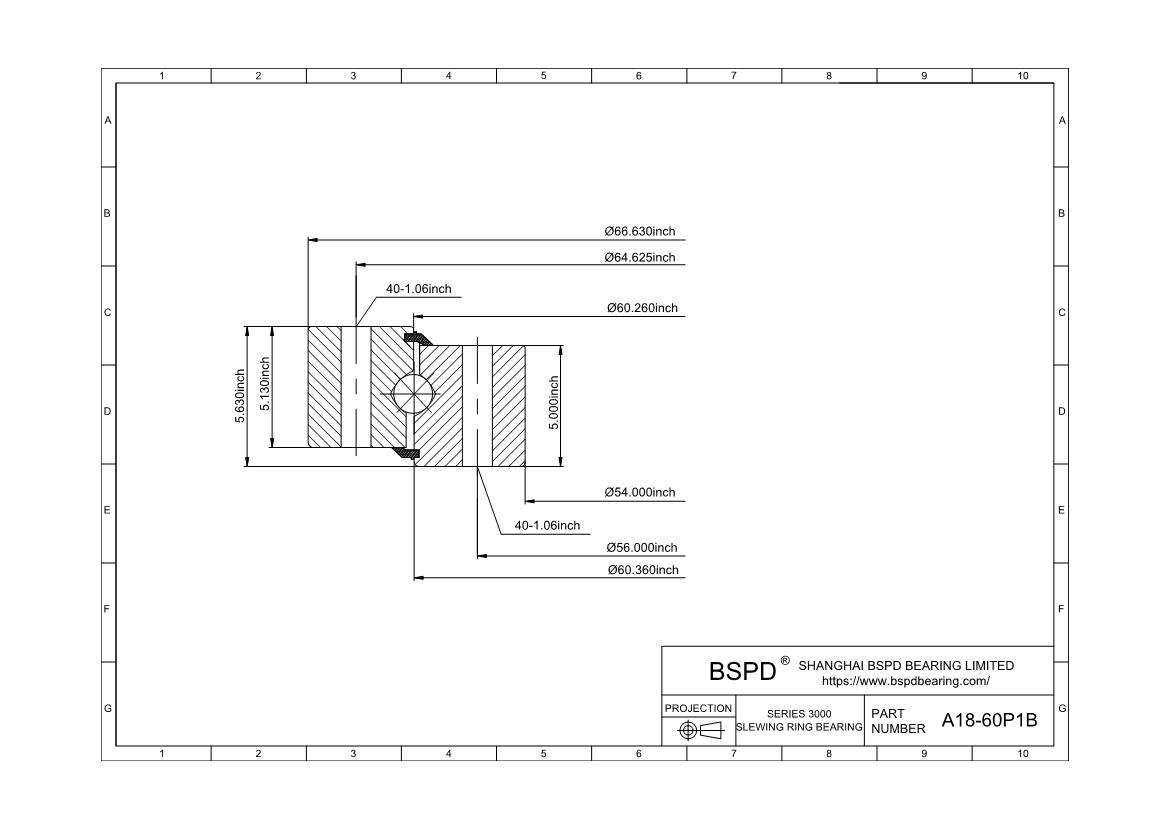

| Outline Dimensions(inches) | |
| OD | 66.63 |
| ID | 54 |
| OE | - |
| OI | 60.26 |
| IO | 60.36 |
| HT | 5.63 |
| OH | 5.13 |
| IH | 4 |
| Mounting Holes | |
| OBC | 64.625 |
| OU | 1.06 |
| No of OBC Holes | 40 |
| IBC | 56 |
| IU | 1.06 |
| No of IBC Holes | 40 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A18-60P1B ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
