A18-60E2
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 51.75"； Outer Diameter: 68.8"； Width (Thickness): 5.5";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A18-60E2 |
| Raceway Moment (ft-lbs) | 2530000 |
| Compressive Thrust(lbs) | 2230000 |
| Weight(lbs) | 1972 |

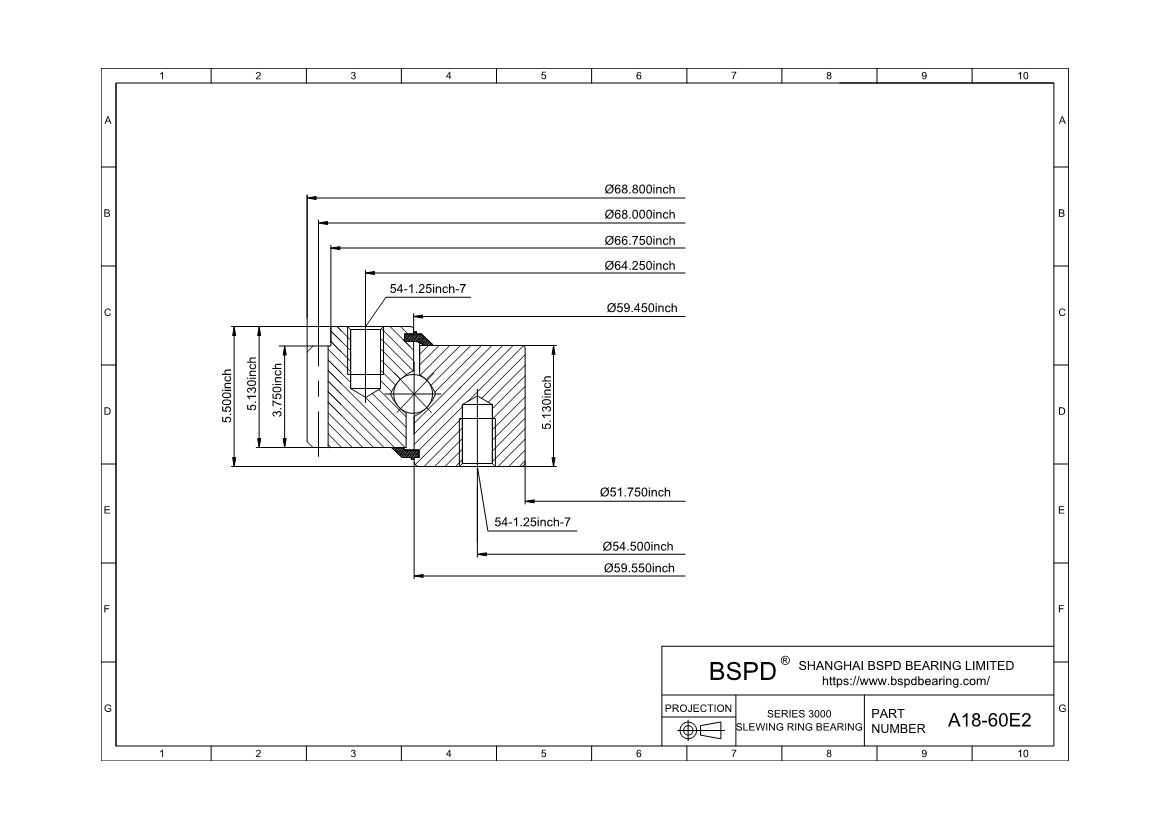

| Outline Dimensions(inches) | |
| OD | 68.8 |
| ID | 51.75 |
| OE | 66.75 |
| OI | 59.45 |
| IO | 59.55 |
| HT | 5.5 |
| OH | 5.13 |
| IH | 5.13 |
| Mounting Holes | |
| OBC | 64.25 |
| OU | 1.25-7 |
| No of OBC Holes | 54 |
| IBC | 54.5 |
| IU | 1.25-7 |
| No of IBC Holes | 54-1 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 68 |
| DP | 2 |
| NO of Teeth | 136 |
| Tooth From | 20d, Stub |
| F | 3.75 |
| Tangential Gear Capacity(lbs) | 35800 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A18-60E2 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
