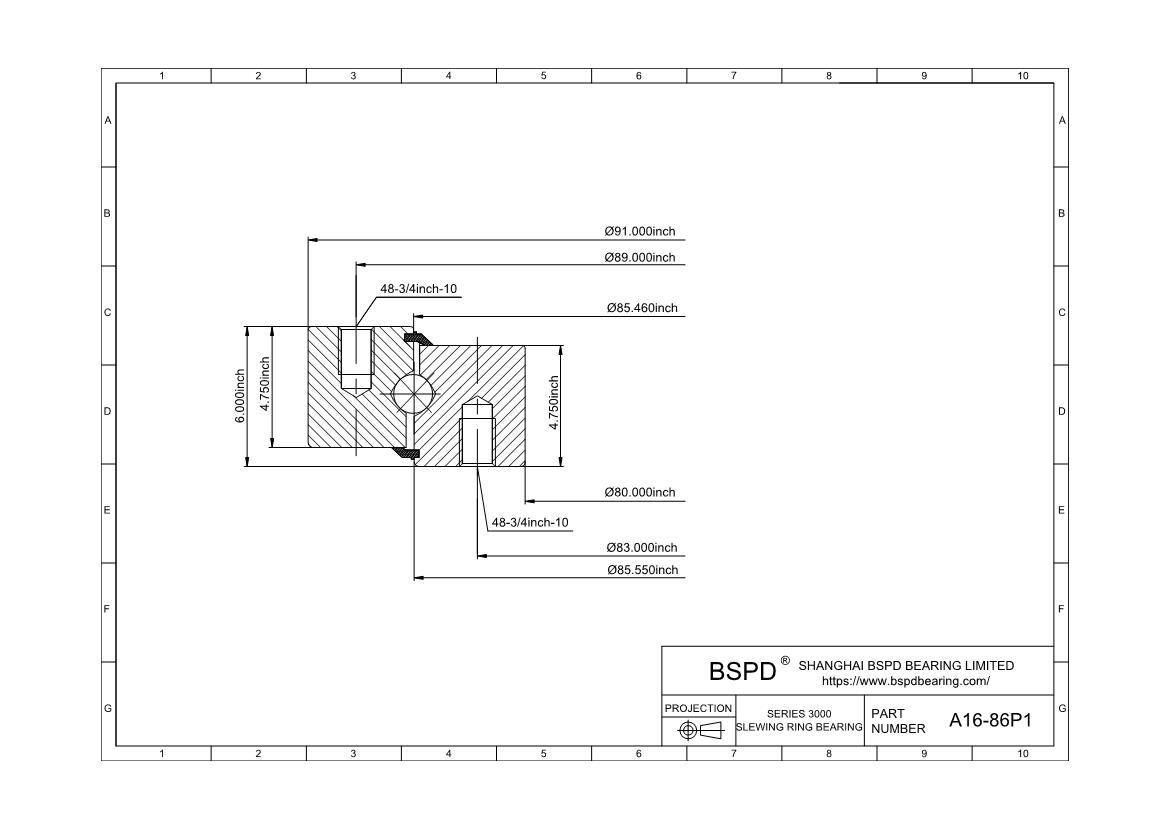

A16-86P1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 80.0"； Outer Diameter: 91.0"； Width (Thickness): 6";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A16-86P1 |
| Raceway Moment (ft-lbs) | 2430000 |
| Compressive Thrust(lbs) | 1500000 |
| Weight(lbs) | 1822 |
| Outline Dimensions(inches) | |
| OD | 91 |
| ID | 80 |
| OE | - |
| OI | 85.46 |
| IO | 85.55 |
| HT | 6 |
| OH | 4.75 |
| IH | 4.75 |
| Mounting Holes | |
| OBC | 89 |
| OU | 3/4-10 |
| No of OBC Holes | 48 |
| IBC | 83 |
| IU | 3/4-10 |
| No of IBC Holes | 48 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A16-86P1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
