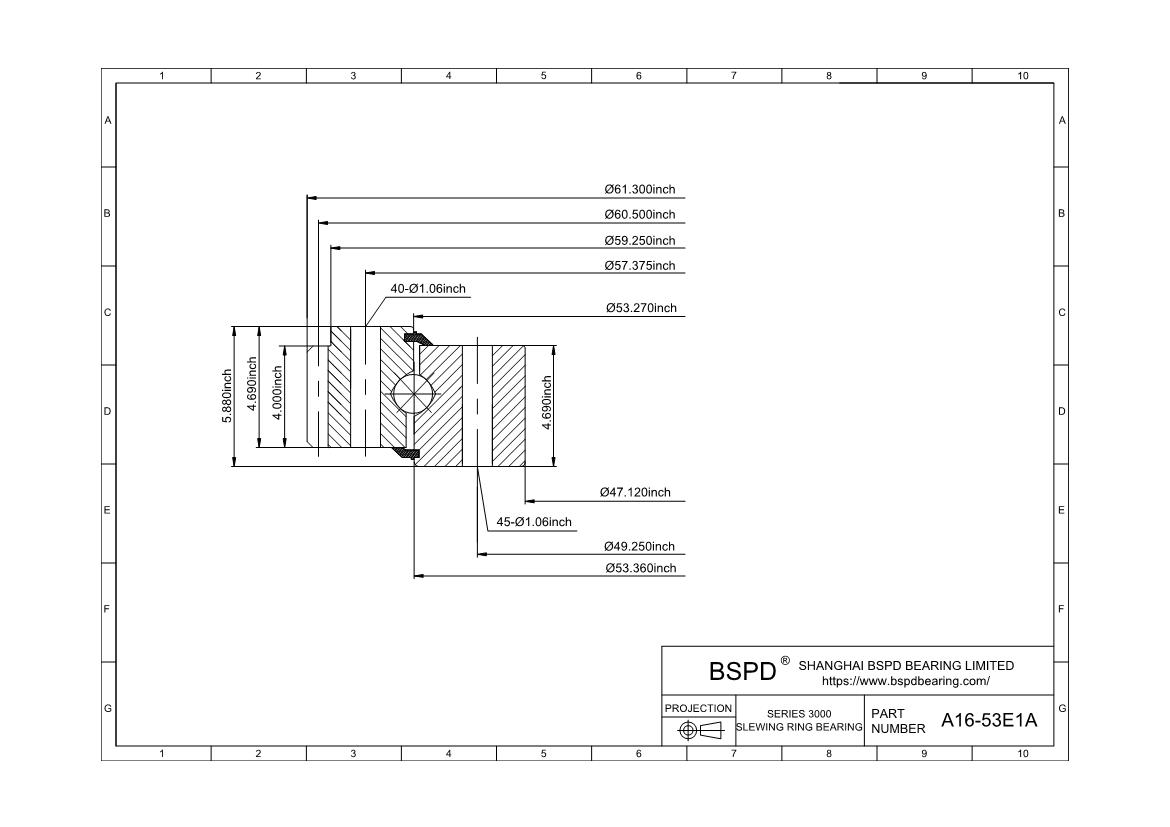

A16-53E1A
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 47.12"； Outer Diameter: 61.3"； Width (Thickness): 5.88";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A16-53E1A |
| Raceway Moment (ft-lbs) | 2030000 |
| Compressive Thrust(lbs) | 2000000 |
| Weight(lbs) | 1540 |
| Outline Dimensions(inches) | |
| OD | 61.3 |
| ID | 47.12 |
| OE | 59.25 |
| OI | 53.27 |
| IO | 53.36 |
| HT | 5.88 |
| OH | 4.69 |
| IH | 4.69 |
| Mounting Holes | |
| OBC | 57.375 |
| OU | 1.06 |
| No of OBC Holes | 40 |
| IBC | 49.25 |
| IU | 1.06 |
| No of IBC Holes | 45-1 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 60.5 |
| DP | 2 |
| NO of Teeth | 121 |
| Tooth From | 20d,Stub |
| F | 4 |
| Tangential Gear Capacity(lbs) | 35800 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A16-53E1A ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
