A14-89P1
Inch Size Slewing Rings

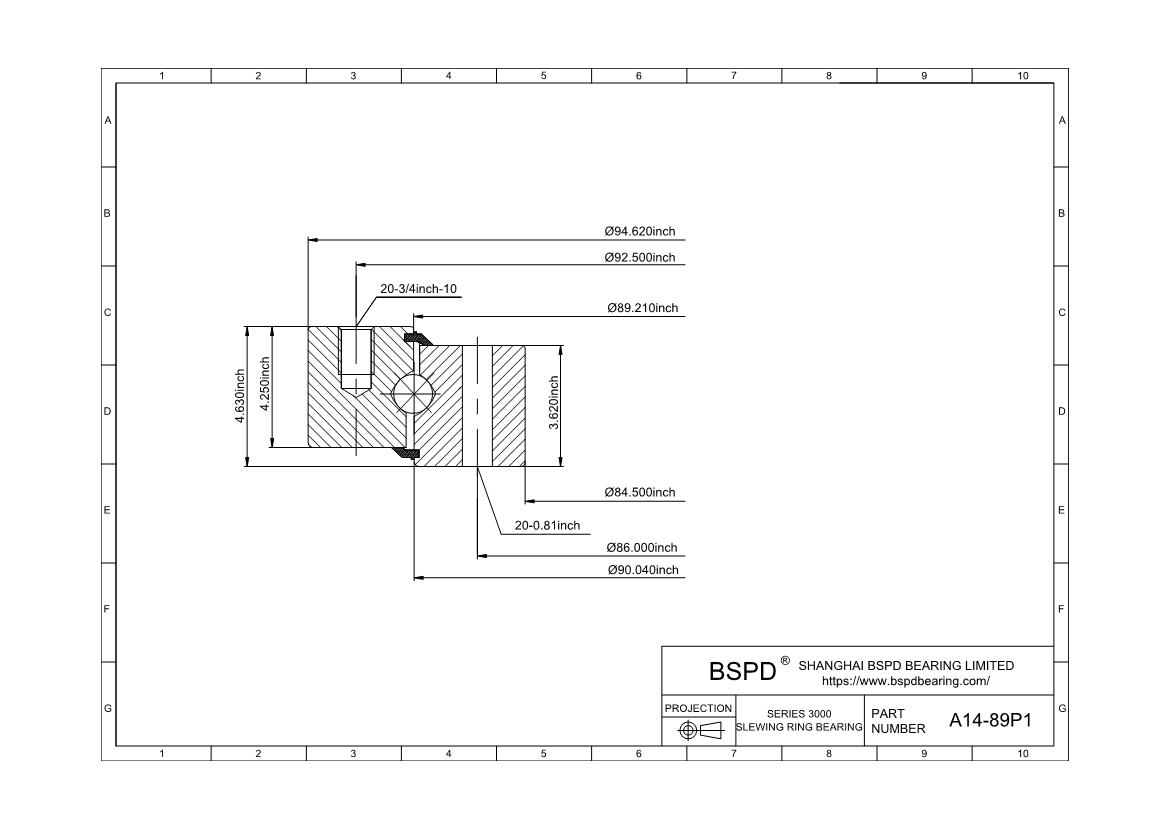

Dimensions: Bore (Inner) Diameter: 84.5"； Outer Diameter: 94.62"； Width (Thickness): 4.63";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A14-89P1 |
| Raceway Moment (ft-lbs) | 2170000 |
| Compressive Thrust(lbs) | 1270000 |
| Weight(lbs) | 1476 |
| Outline Dimensions(inches) | |
| OD | 94.62 |
| ID | 84.5 |
| OE | - |
| OI | 89.214 |
| IO | 90.04 |
| HT | 4.63 |
| OH | 4.25 |
| IH | 4.25 |
| Mounting Holes | |
| OBC | 92.5 |
| OU | 3/4-10 |
| No of OBC Holes | 20 |
| IBC | 86 |
| IU | 0.81 |
| No of IBC Holes | 20 |
| Hole Figure Style | 4 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A14-89P1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
