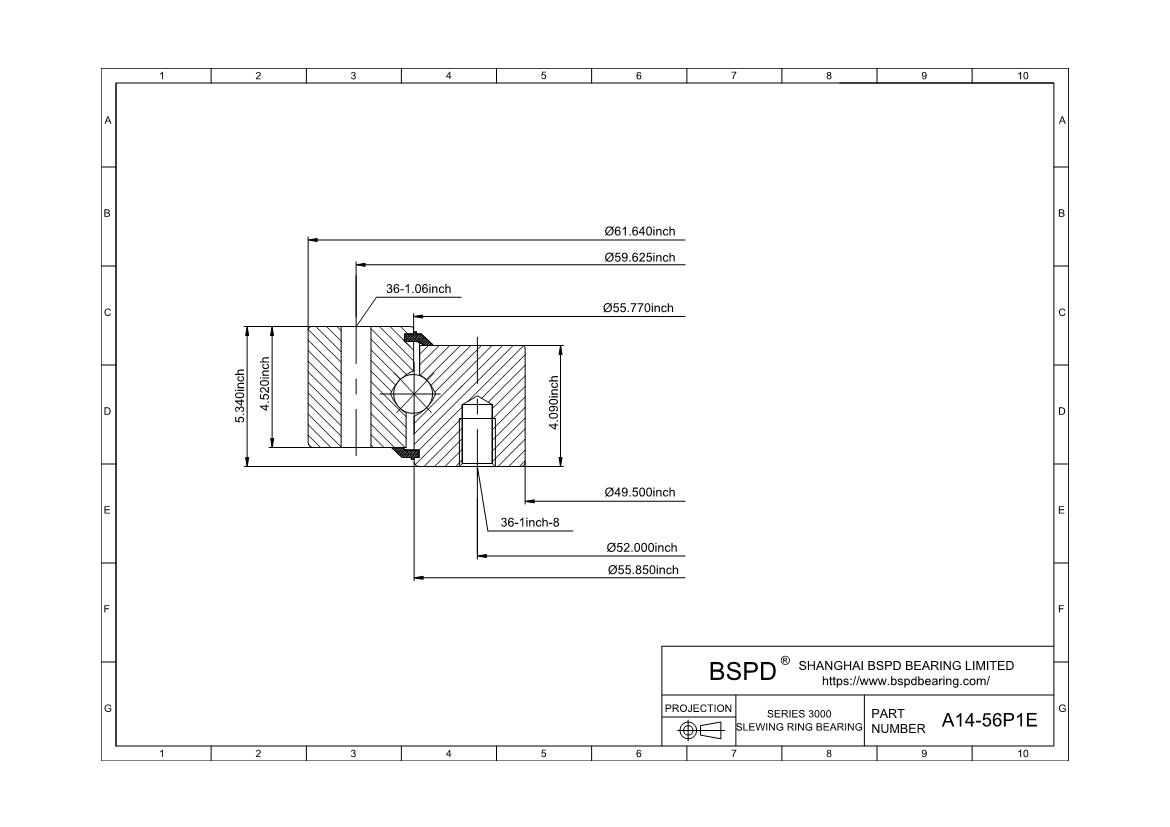

A14-56P1E
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 49.5"； Outer Diameter: 61.64"； Width (Thickness): 5.34";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A14-56P1E |
| Raceway Moment (ft-lbs) | 1240000 |
| Compressive Thrust(lbs) | 1160000 |
| Weight(lbs) | 1005 |
| Outline Dimensions(inches) | |
| OD | 61.64 |
| ID | 49.5 |
| OE | - |
| OI | 55.77 |
| IO | 55.85 |
| HT | 5.34 |
| OH | 4.52 |
| IH | 4.09 |
| Mounting Holes | |
| OBC | 59.625 |
| OU | 1.06 |
| No of OBC Holes | 36 |
| IBC | 52 |
| IU | 1-8 |
| No of IBC Holes | 36 |
| Hole Figure Style | 4 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A14-56P1E ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
