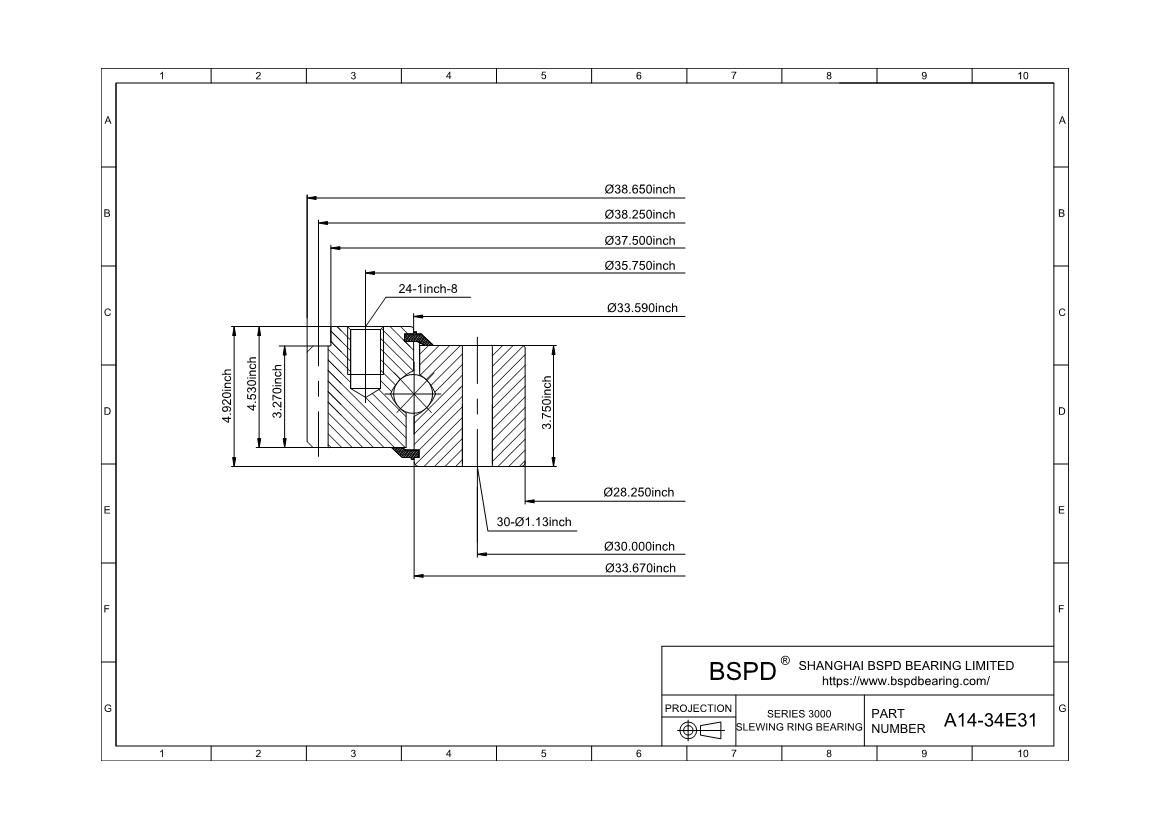

A14-34E31
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 28.25"； Outer Diameter: 38.65"； Width (Thickness): 4.92";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A14-34E31 |
| Raceway Moment (ft-lbs) | 735000 |
| Compressive Thrust(lbs) | 1150000 |
| Weight(lbs) | 557 |
| Outline Dimensions(inches) | |
| OD | 38.65 |
| ID | 28.25 |
| OE | 37.5 |
| OI | 33.59 |
| IO | 33.67 |
| HT | 4.92 |
| OH | 4.53 |
| IH | 3.75 |
| Mounting Holes | |
| OBC | 35.75 |
| OU | 1-8 |
| No of OBC Holes | 24 |
| IBC | 30 |
| IU | 1.13 |
| No of IBC Holes | 30-1 |
| Hole Figure Style | 4 |
| Gear Data | |
| PD | 38.25 |
| DP | 4 |
| NO of Teeth | 153 |
| Tooth From | 20d, 4/5 Fellow |
| F | 3.27 |
| Tangential Gear Capacity(lbs) | 15700 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A14-34E31 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
