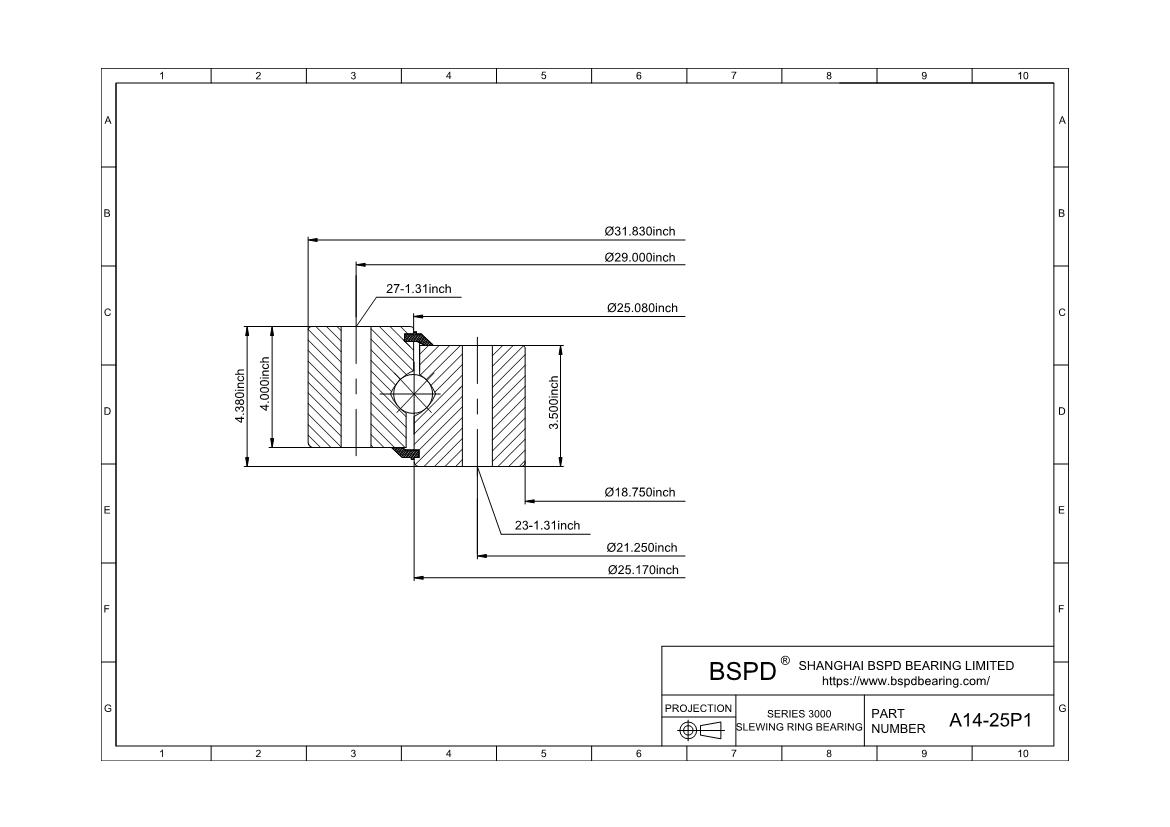

A14-25P1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 18.75"； Outer Diameter: 31.83"； Width (Thickness): 4.38";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A14-25P1 |
| Raceway Moment (ft-lbs) | 430000 |
| Compressive Thrust(lbs) | 898000 |
| Weight(lbs) | 475 |
| Outline Dimensions(inches) | |
| OD | 31.83 |
| ID | 18.75 |
| OE | - |
| OI | 25.08 |
| IO | 25.17 |
| HT | 4.38 |
| OH | 4 |
| IH | 3.5 |
| Mounting Holes | |
| OBC | 29 |
| OU | 1.31 |
| No of OBC Holes | 27 |
| IBC | 21.25 |
| IU | 1.31 |
| No of IBC Holes | 23 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
