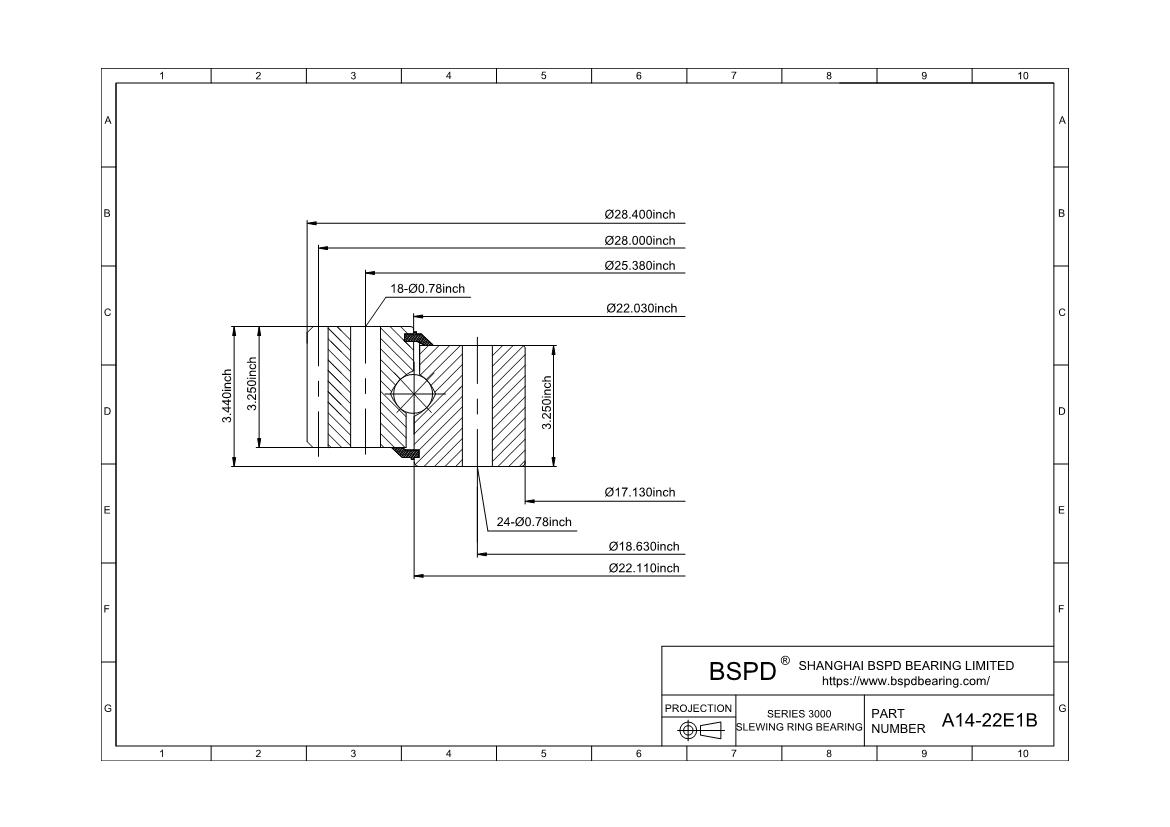

A14-22E1B
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 17.13"； Outer Diameter: 28.4"； Width (Thickness): 3.44";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A14-22E1B |
| Raceway Moment (ft-lbs) | 194000 |
| Compressive Thrust(lbs) | 461000 |
| Weight(lbs) | 319 |
| Outline Dimensions(inches) | |
| OD | 28.4 |
| ID | 17.13 |
| OE | - |
| OI | 22.03 |
| IO | 22.11 |
| HT | 3.44 |
| OH | 3.25 |
| IH | 3.25 |
| Mounting Holes | |
| OBC | 25.38 |
| OU | 0.78 |
| No of OBC Holes | 18 |
| IBC | 18.63 |
| IU | 0.78 |
| No of IBC Holes | 24-1 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 28 |
| DP | 4 |
| NO of Teeth | 112 |
| Tooth From | 20d,Stub |
| F | 3.25 |
| Tangential Gear Capacity(lbs) | 14500 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A14-22E1B ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
