A13-38E1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 32.53"； Outer Diameter: 45.6"； Width (Thickness): 4.63";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A13-38E1 |
| Raceway Moment (ft-lbs) | 893000 |
| Compressive Thrust(lbs) | 1230000 |
| Weight(lbs) | 669 |

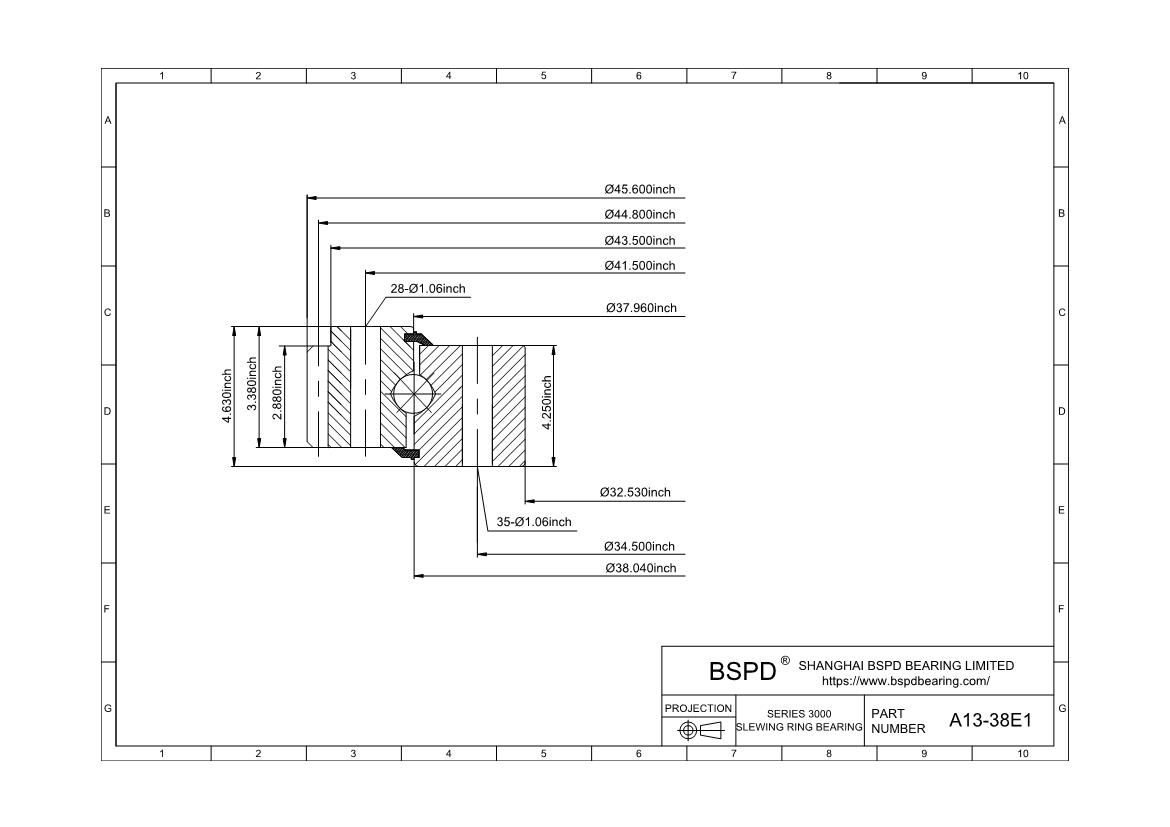

| Outline Dimensions(inches) | |
| OD | 45.6 |
| ID | 32.53 |
| OE | 43.5 |
| OI | 37.96 |
| IO | 38.04 |
| HT | 4.63 |
| OH | 3.38 |
| IH | 4.25 |
| Mounting Holes | |
| OBC | 41.5 |
| OU | 1.06 |
| No of OBC Holes | 28 |
| IBC | 34.5 |
| IU | 1.06 |
| No of IBC Holes | 35 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 44.8 |
| DP | 2.5 |
| NO of Teeth | 112 |
| Tooth From | 20d, Full Depth |
| F | 2.88 |
| Tangential Gear Capacity(lbs) | 18100 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A13-38E1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
