A12-48E12
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 43.0"； Outer Diameter: 54.24"； Width (Thickness): 4";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A12-48E12 |
| Raceway Moment (ft-lbs) | 815000 |
| Compressive Thrust(lbs) | 895000 |
| Weight(lbs) | 720 |

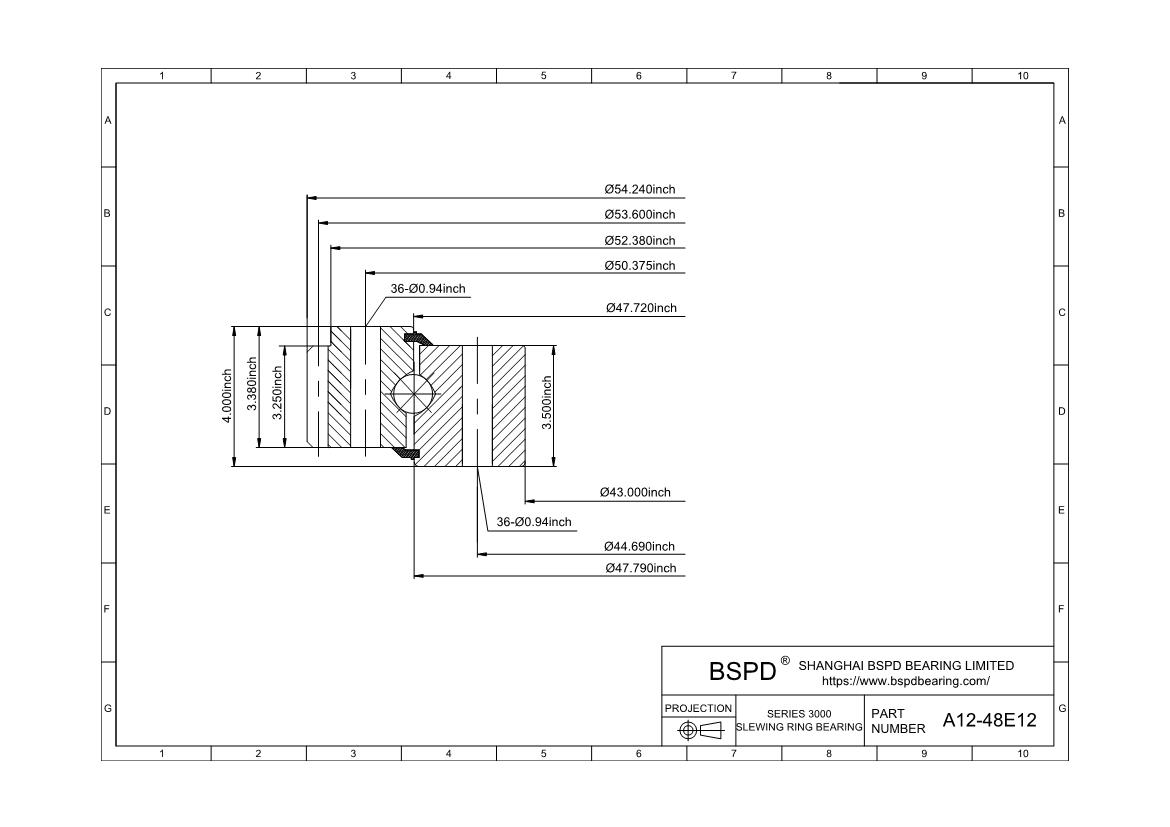

| Outline Dimensions(inches) | |
| OD | 54.240 |
| ID | 43 |
| OE | 52.38 |
| OI | 47.72 |
| IO | 47.79 |
| HT | 4 |
| OH | 3.38 |
| IH | 3.5 |
| Mounting Holes | |
| OBC | 50.790 |
| OU | 0.94 |
| No of OBC Holes | 36 |
| IBC | 44.69 |
| IU | 0.94 |
| No of IBC Holes | 36 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 53.6 |
| DP | 2.5 |
| NO of Teeth | 134 |
| Tooth From | 20d, Stub |
| F | 3.25 |
| Tangential Gear Capacity(lbs) | 23400 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A12-48E12 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
