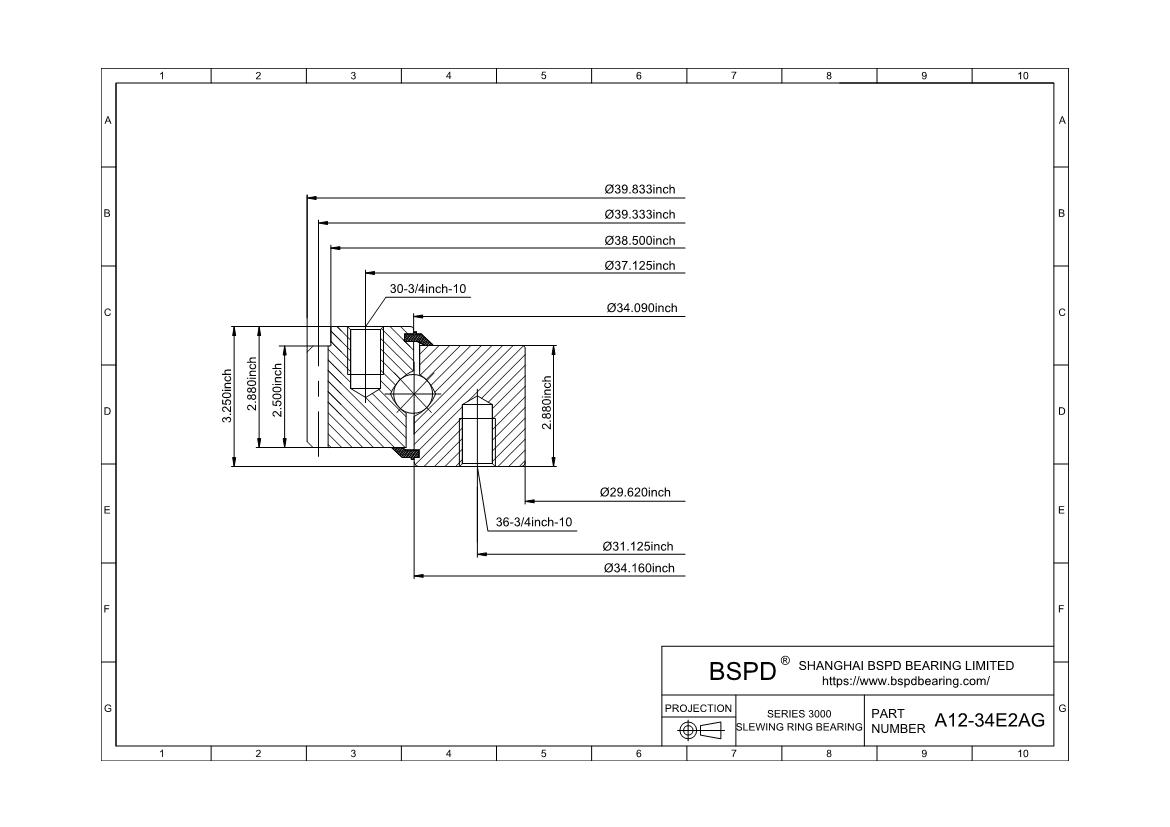

A12-34E2AG
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 29.62"； Outer Diameter: 39.833"； Width (Thickness): 3.25";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A12-34E2AG |
| Raceway Moment (ft-lbs) | 413000 |
| Compressive Thrust(lbs) | 635000 |
| Weight(lbs) | 390 |
| Outline Dimensions(inches) | |
| OD | 39.833 |
| ID | 29.62 |
| OE | 38.5 |
| OI | 34.09 |
| IO | 34.16 |
| HT | 3.25 |
| OH | 2.88 |
| IH | 2.88 |
| Mounting Holes | |
| OBC | 37.125 |
| OU | 3/4-10 |
| No of OBC Holes | 30 |
| IBC | 31.125 |
| IU | 3/4-10 |
| No of IBC Holes | 36 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 39.333 |
| DP | 3 |
| NO of Teeth | 118 |
| Tooth From | 20d,3/4 Fellows |
| F | 2.5 |
| Tangential Gear Capacity(lbs) | 15300 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A12-34E2AG ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
