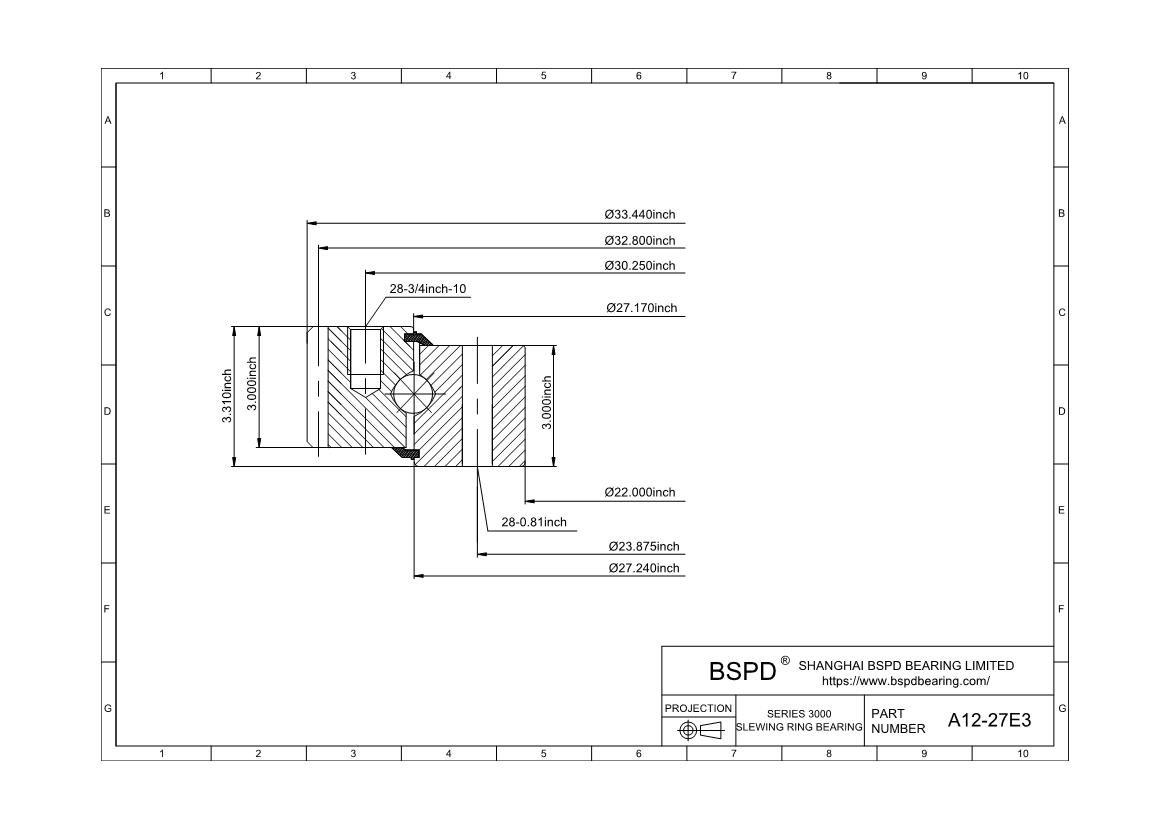

A12-27E3
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 22.0"； Outer Diameter: 33.44"； Width (Thickness): 3.31";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A12-27E3 |
| Raceway Moment (ft-lbs) | 398000 |
| Compressive Thrust(lbs) | 768000 |
| Weight(lbs) | 354 |
| Outline Dimensions(inches) | |
| OD | 33.44 |
| ID | 22 |
| OE | - |
| OI | 27.17 |
| IO | 27.24 |
| HT | 3.31 |
| OH | 3 |
| IH | 3 |
| Mounting Holes | |
| OBC | 30.25 |
| OU | 3/4-10 |
| No of OBC Holes | 28 |
| IBC | 23.875 |
| IU | 0.81 |
| No of IBC Holes | 28 |
| Hole Figure Style | 4 |
| Gear Data | |
| PD | 32.8 |
| DP | 2.5 |
| NO of Teeth | 82 |
| Tooth From | 20d,Full Depth |
| F | 3 |
| Tangential Gear Capacity(lbs) | 22300 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A12-27E3 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
