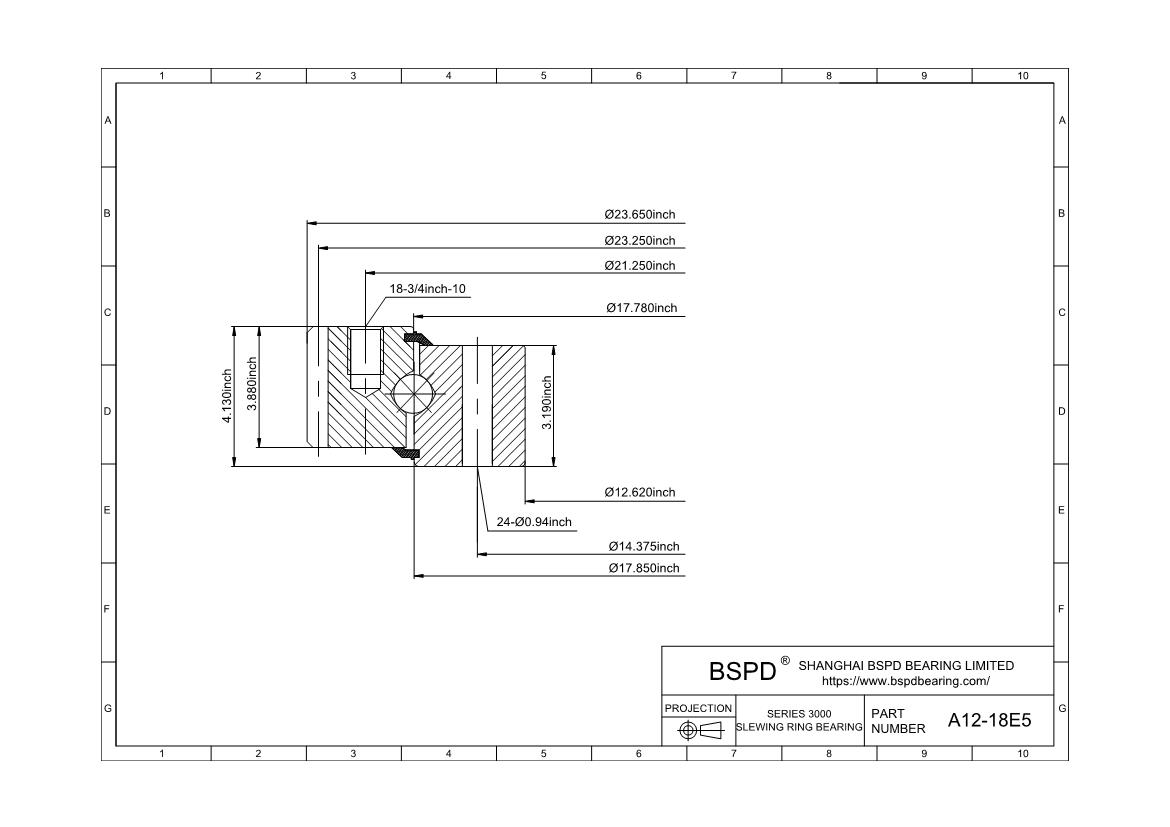

A12-18E5
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 12.62"； Outer Diameter: 23.65"； Width (Thickness): 4.13";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A12-18E5 |
| Raceway Moment (ft-lbs) | 143000 |
| Compressive Thrust(lbs) | 421000 |
| Weight(lbs) | 285 |
| Outline Dimensions(inches) | |
| OD | 23.65 |
| ID | 12.62 |
| OE | - |
| OI | 17.78 |
| IO | 17.85 |
| HT | 4.13 |
| OH | 3.88 |
| IH | 3.19 |
| Mounting Holes | |
| OBC | 21.25 |
| OU | 3/4-10 |
| No of OBC Holes | 18 |
| IBC | 14.375 |
| IU | 0.94 |
| No of IBC Holes | 24-1 |
| Hole Figure Style | 4 |
| Gear Data | |
| PD | 23.25 |
| DP | 4 |
| NO of Teeth | 93 |
| Tooth From | 20d, Stub |
| F | 3.88 |
| Tangential Gear Capacity(lbs) | 17100 |
