A10-47E1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 42.0"； Outer Diameter: 54.3"； Width (Thickness): 4.63";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A10-47E1 |
| Raceway Moment (ft-lbs) | 1030000 |
| Compressive Thrust(lbs) | 1150000 |
| Weight(lbs) | 783 |

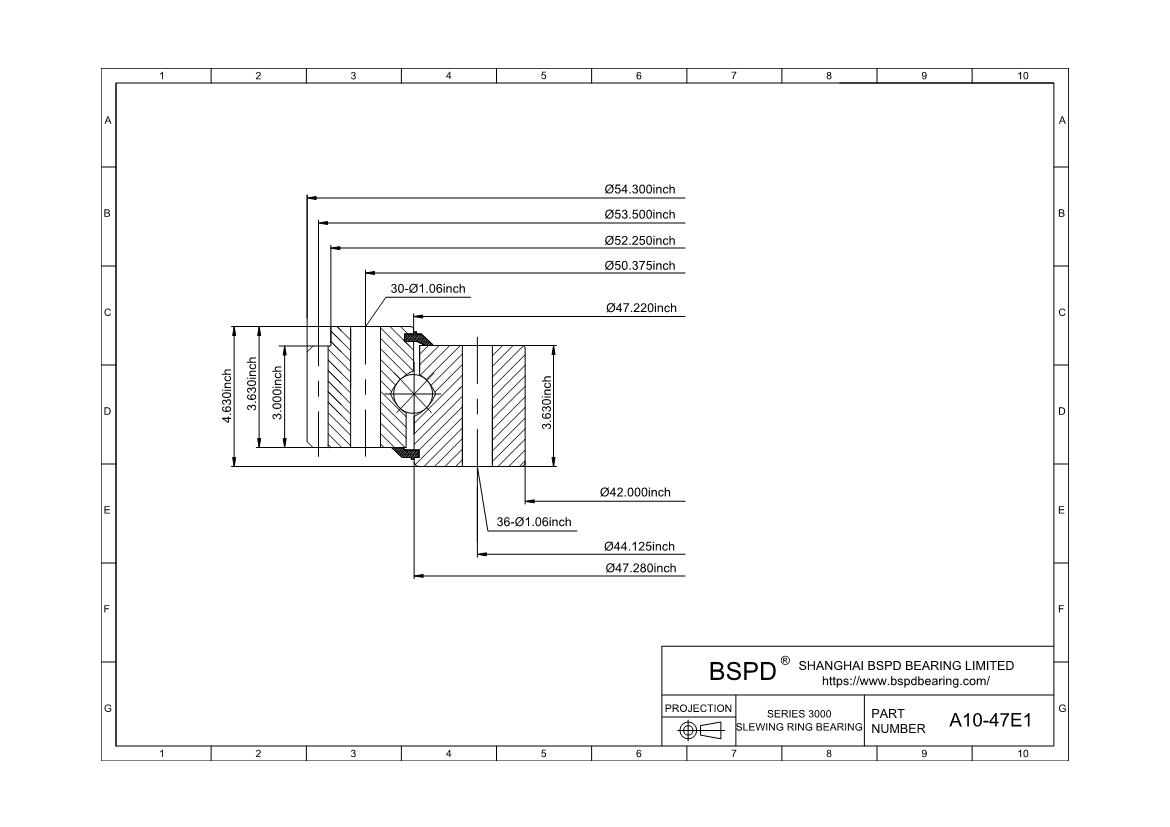

| Outline Dimensions(inches) | |
| OD | 54.3 |
| ID | 42 |
| OE | 52.25 |
| OI | 47.22 |
| IO | 47.28 |
| HT | 4.63 |
| OH | 3.63 |
| IH | 3.63 |
| Mounting Holes | |
| OBC | 50.375 |
| OU | 1.06 |
| No of OBC Holes | 30 |
| IBC | 44.125 |
| IU | 1.06 |
| No of IBC Holes | 36 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 53.5 |
| DP | 2 |
| NO of Teeth | 107 |
| Tooth From | 20d, Stub |
| F | 3 |
| Tangential Gear Capacity(lbs) | 26700 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A10-47E1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
