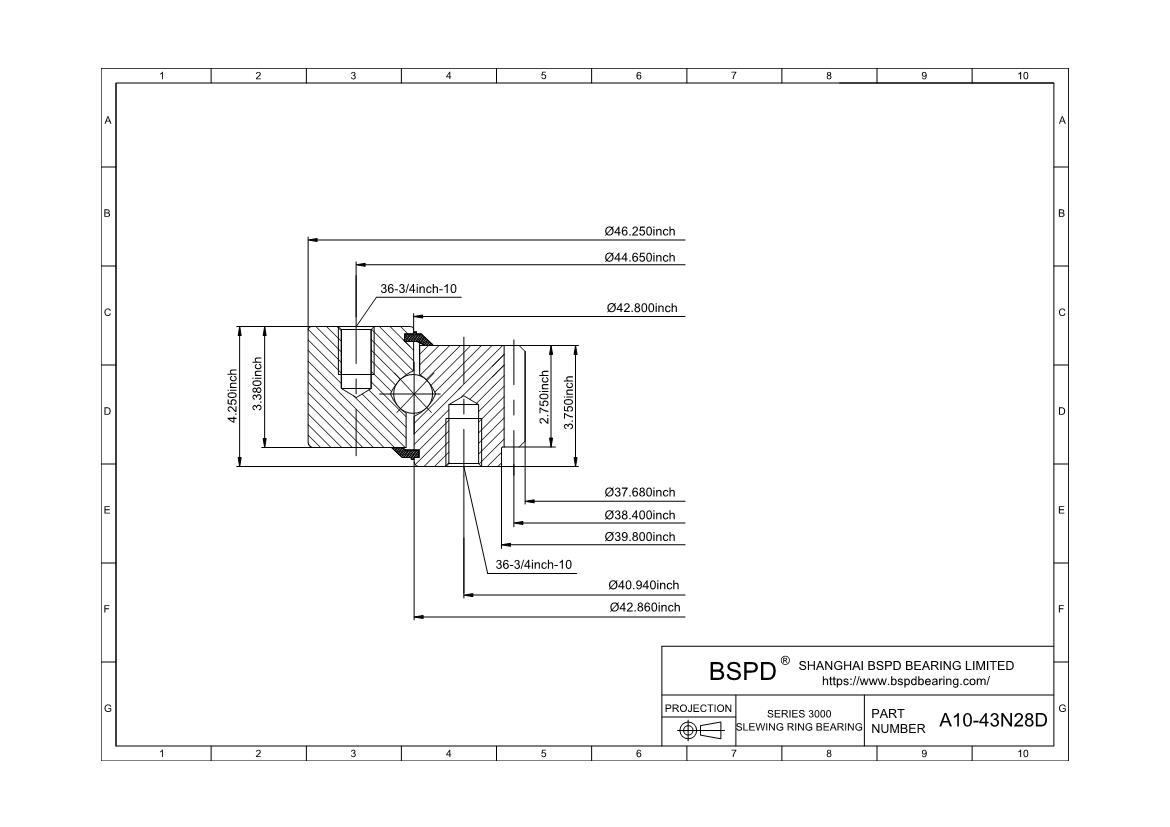

A10-43N28D
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 37.68"； Outer Diameter: 46.25"； Width (Thickness): 4.25";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A10-43N28D |
| Raceway Moment (ft-lbs) | 603000 |
| Compressive Thrust(lbs) | 739000 |
| Weight(lbs) | 448 |
| Outline Dimensions(inches) | |
| OD | 46.25 |
| ID | 37.68 |
| OE | 39.8 |
| OI | 42.8 |
| IO | 42.86 |
| HT | 4.25 |
| OH | 3.38 |
| IH | 3.75 |
| Mounting Holes | |
| OBC | 44.65 |
| OU | 3/4-10 |
| No of OBC Holes | 36 |
| IBC | 40.94 |
| IU | 3/4-10 |
| No of IBC Holes | 36 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 38.4 |
| DP | 2.5 |
| NO of Teeth | 96 |
| Tooth From | 20d, Full Depth |
| F | 2.75 |
| Tangential Gear Capacity(lbs) | 21900 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A10-43N28D ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
