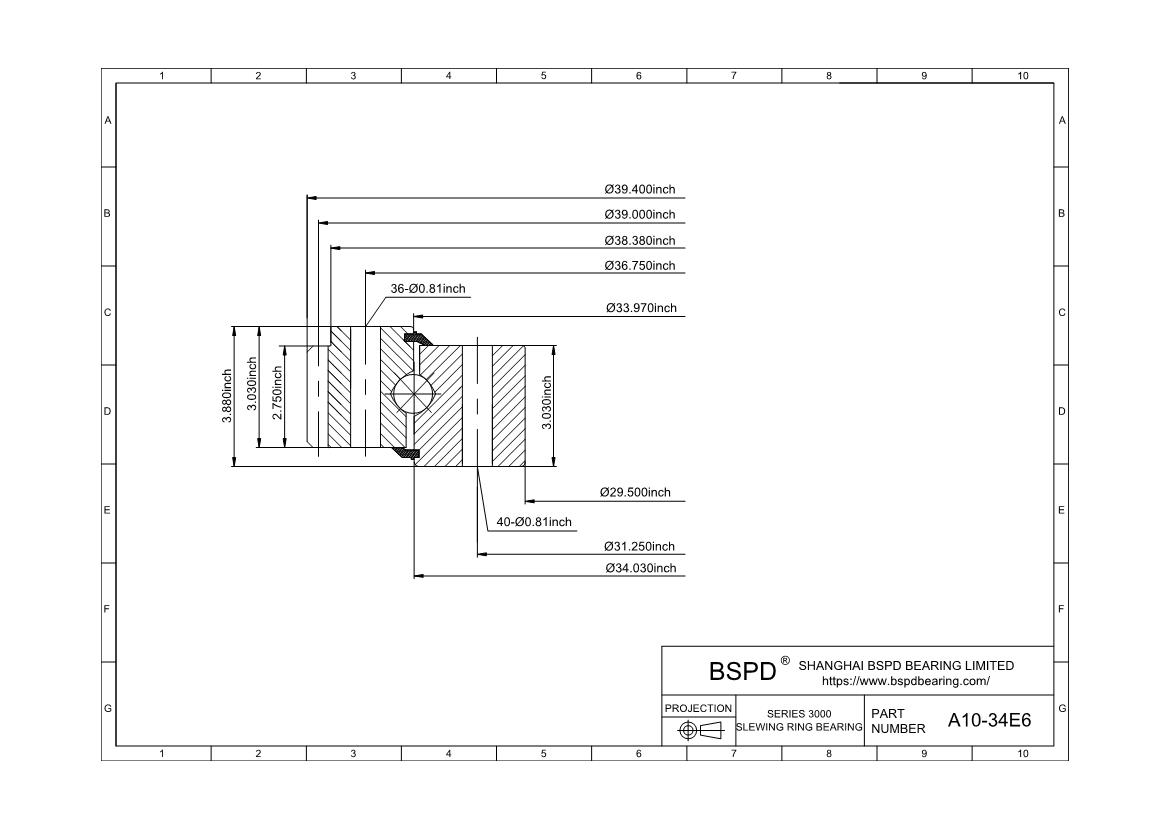

A10-34E6
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 29.5"； Outer Diameter: 39.4"； Width (Thickness): 3.88";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A10-34E6 |
| Raceway Moment (ft-lbs) | 583000 |
| Compressive Thrust(lbs) | 899000 |
| Weight(lbs) | 387 |
| Outline Dimensions(inches) | |
| OD | 39.4 |
| ID | 29.5 |
| OE | 38.38 |
| OI | 33.97 |
| IO | 34.03 |
| HT | 3.88 |
| OH | 3.03 |
| IH | 3.03 |
| Mounting Holes | |
| OBC | 36.75 |
| OU | 0.81 |
| No of OBC Holes | 36 |
| IBC | 31.25 |
| IU | 0.81 |
| No of IBC Holes | 40-1 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | 39 |
| DP | 4 |
| NO of Teeth | 156 |
| Tooth From | 20d, 4/5 Fellows |
| F | 2.75 |
| Tangential Gear Capacity(lbs) | 12500 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A10-34E6 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
