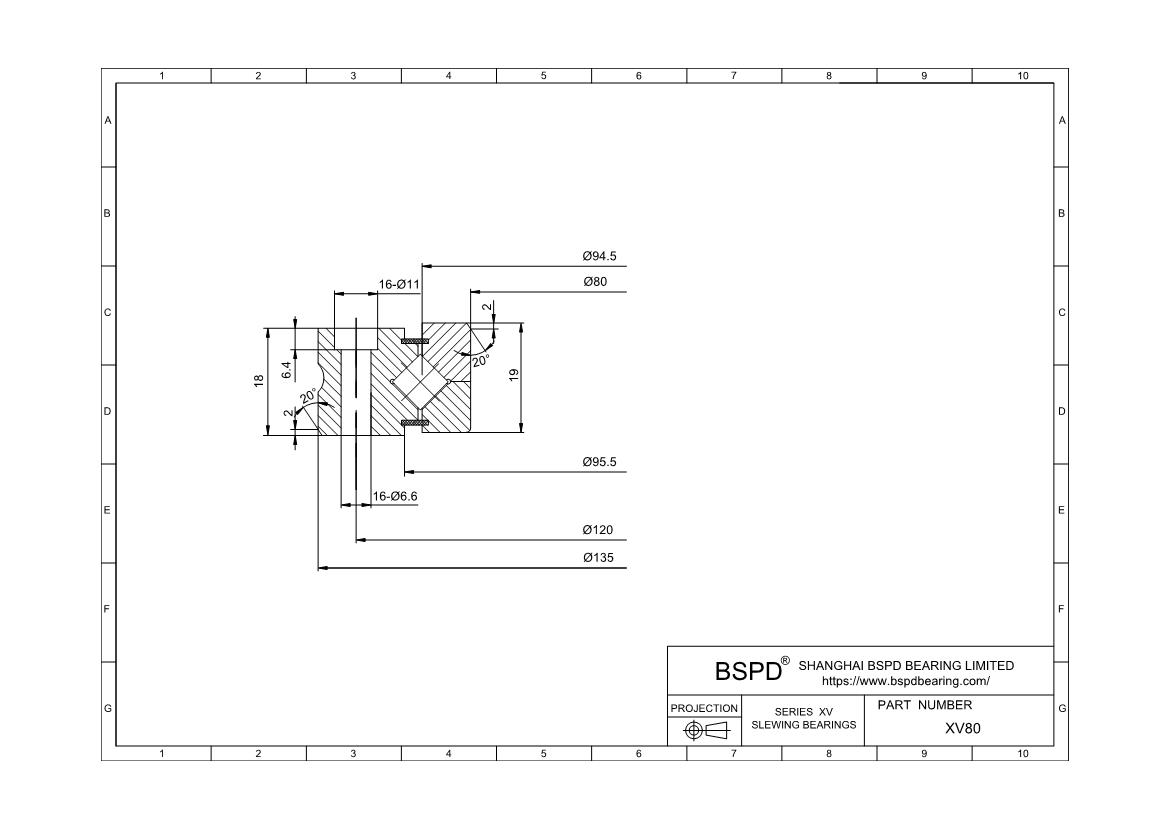

XV80
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 80 mm； Outer Diameter: 135 mm； Width (Thickness): 18 mm;
REQUEST FOR QUOTE
Product Attributes
| XV80 Crossed roller bearing | |
| Part Number | XV80 |
| di | 80 mm Tolerance: J6 |
| Da | 135 mm Tolerance: h6 |
| Di | 95;5 mm |
| da | 94;5 mm |
| dB | 6;6 mm |
| dS | 11 mm |
| Ha | 18 mm |
| hi | 19 mm |
| La | 120 mm |
| Number of holes per ring(nϑr) | 16 |
| tS | 6;4 mm |
| weight(w) | 1;18 kg |
| Running accuracy; axial | 0;010 mm |
| Running accuracy; radial | 0;010 mm |
| Maximum permissible radial load against friction lock(Frper) | 15300 N |
| Basic dynamic load rating; axial(Ca) | 33500 N |
| Basic static load rating; axial(C0a) | 101000 N |
| Basic dynamic load rating; radial(Cr) | 23800 N |
| Basic static load rating; radial(C0r) | 49500 N |
| Limiting speed with preload | 402 1/min |
| Limiting speed with clearance | 804 1/min |
