XV60
Crossed Roller TYPE

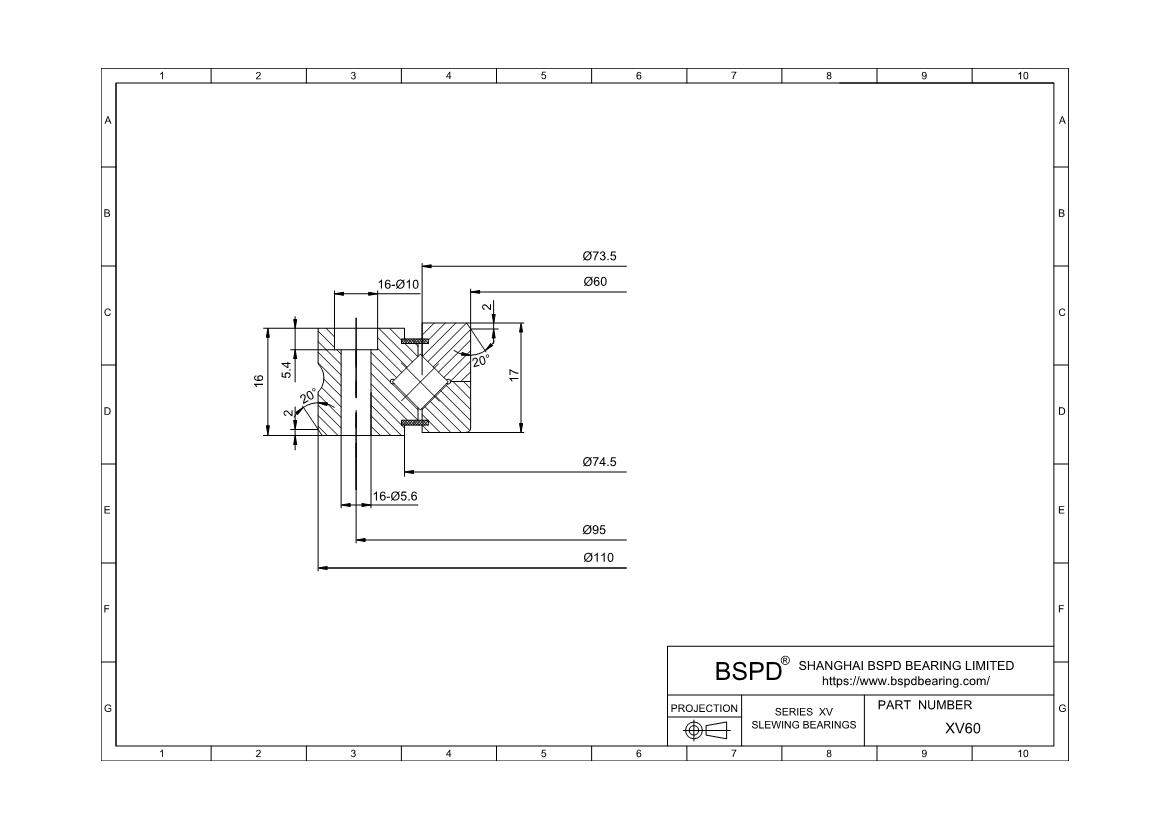

Dimensions: Bore (Inner) Diameter: 60 mm； Outer Diameter: 110 mm； Width (Thickness): 16 mm;
REQUEST FOR QUOTE
Product Attributes
| XV60 Crossed roller bearing | |
| Part Number | XV60 |
| di | 60 mm Tolerance: J6 |
| Da | 110 mm Tolerance: h6 |
| Di | 74;5 mm |
| da | 73;5 mm |
| dB | 5;6 mm |
| dS | 10 mm |
| Ha | 16 mm |
| hi | 17 mm |
| La | 95 mm |
| Number of holes per ring(nϑr) | 16 |
| tS | 5;4 mm |
| weight(w) | 0;75 kg |
| Running accuracy; axial | 0;010 mm |
| Running accuracy; radial | 0;01 mm |
| Maximum permissible radial load against friction lock(Frper) | 10900 N |
| Basic dynamic load rating; axial(Ca) | 21700 N |
| Basic static load rating; axial(C0a) | 61000 N |
| Basic dynamic load rating; radial(Cr) | 15500 N |
| Basic static load rating; radial(C0r) | 29500 N |
| Limiting speed with preload | 516 1/min |
| Limiting speed with clearance | 1032 1/min |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings XV60 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
