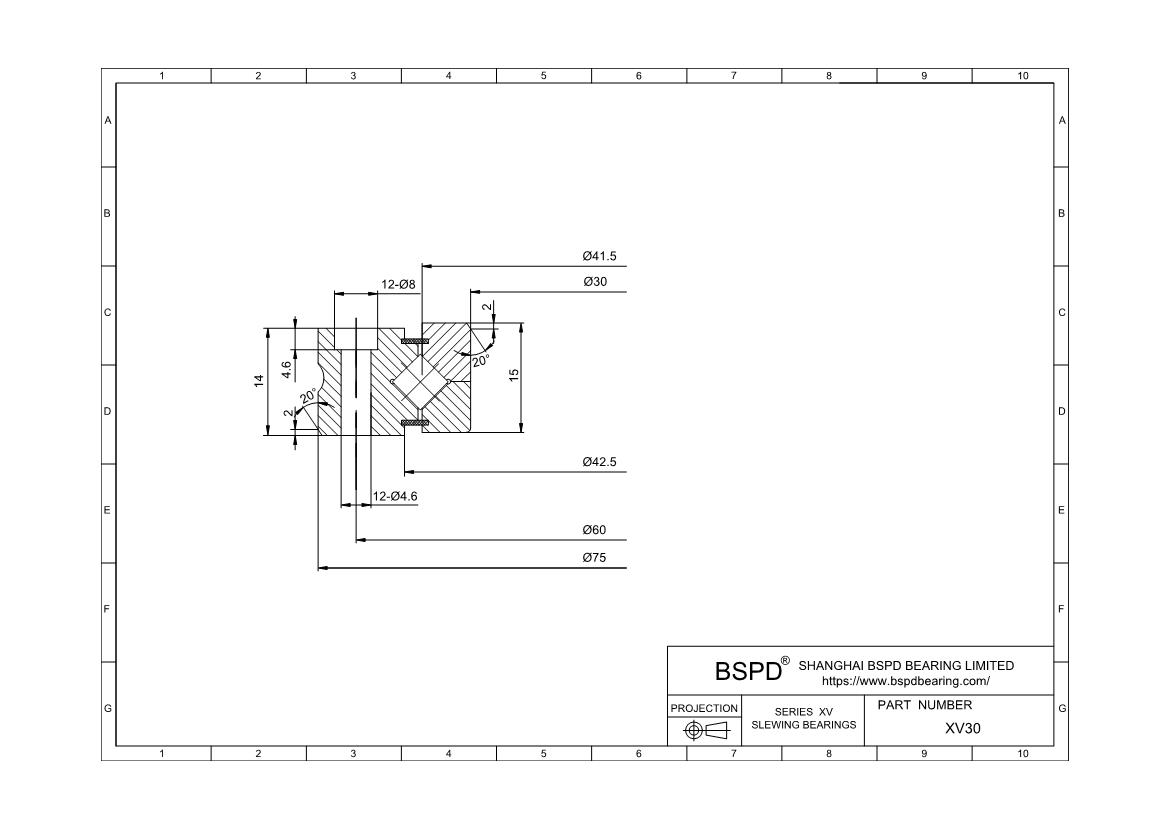

XV30
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 30 mm； Outer Diameter: 75 mm； Width (Thickness): 14 mm;
REQUEST FOR QUOTE
Product Attributes
| XV30 Crossed roller bearing | |
| Part Number | XV30 |
| di | 30 mm Tolerance: J6 |
| Da | 75 mm Tolerance: h6 |
| Di | 42;5 mm |
| da | 41;5 mm |
| dB | 4;6 mm |
| dS | 8 mm |
| Ha | 14 mm |
| hi | 15 mm |
| La | 60 mm |
| Number of holes per ring(nϑr) | 12 |
| tS | 4;6 mm |
| weight(w) | 0;37 kg |
| Running accuracy; axial | 0;010 mm |
| Running accuracy; radial | 0;01 mm |
| Maximum permissible radial load against friction lock(Frper) | 5000 N |
| Basic dynamic load rating; axial(Ca) | 11500 N |
| Basic static load rating; axial(C0a) | 26000 N |
| Basic dynamic load rating; radial(Cr) | 8200 N |
| Basic static load rating; radial(C0r) | 12700 N |
| Limiting speed with preload | 910 1/min |
| Limiting speed with clearance | 1819 1/min |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings XV30 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
