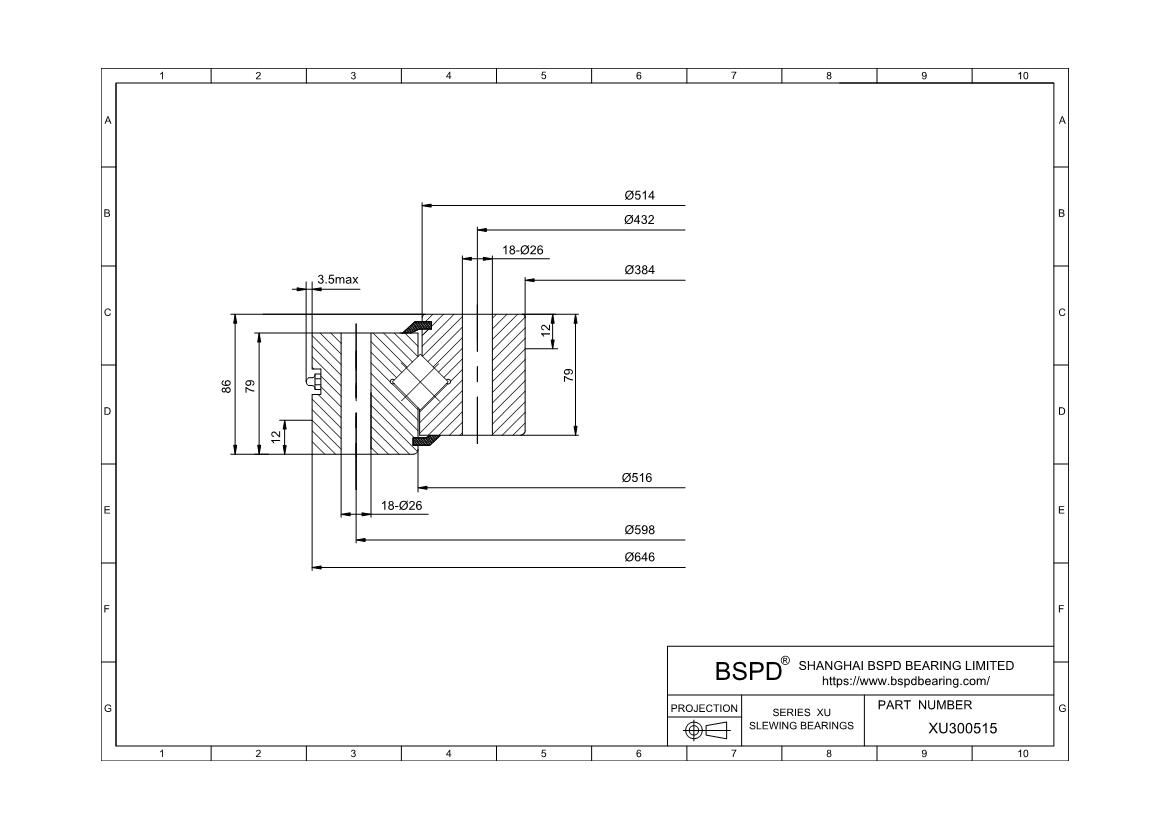

XU300515
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 384 mm； Outer Diameter: 646 mm； Width (Thickness): 86 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XU300515 |
| di | 384 mm |
| Da | 646 mm |
| DaZT | 644 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: -IT8 |
| Di | 516 mm |
| da | 514 mm |
| dB | 26 mm |
| dS | 386 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8 |
| H | 86 mm |
| h | 79 mm |
| La | 598 mm |
| Li | 432 mm |
| Number of fixing holes in outer ring(na) | 18 |
| Number of fixing holes in inner ring(ni) | 18 |
| tS | 12 mm |
| weight(w) | 115 kg |
| Maximum permissible radial load against friction lock(Frper) | 313200 N |
| Basic dynamic load rating, axial(Ca) | 650000 N |
| Basic static load rating, axial(C0a) | 1290000 N |
| Basic dynamic load rating, radial(Cr) | 465000 N |
| Basic static load rating, radial(C0r) | 630000 N |
| Bearing clearance: preload(VSPmin) | |
| Bearing clearance: preload(VSPmax) | 0,03 |
| With lip seal and special seal | |
