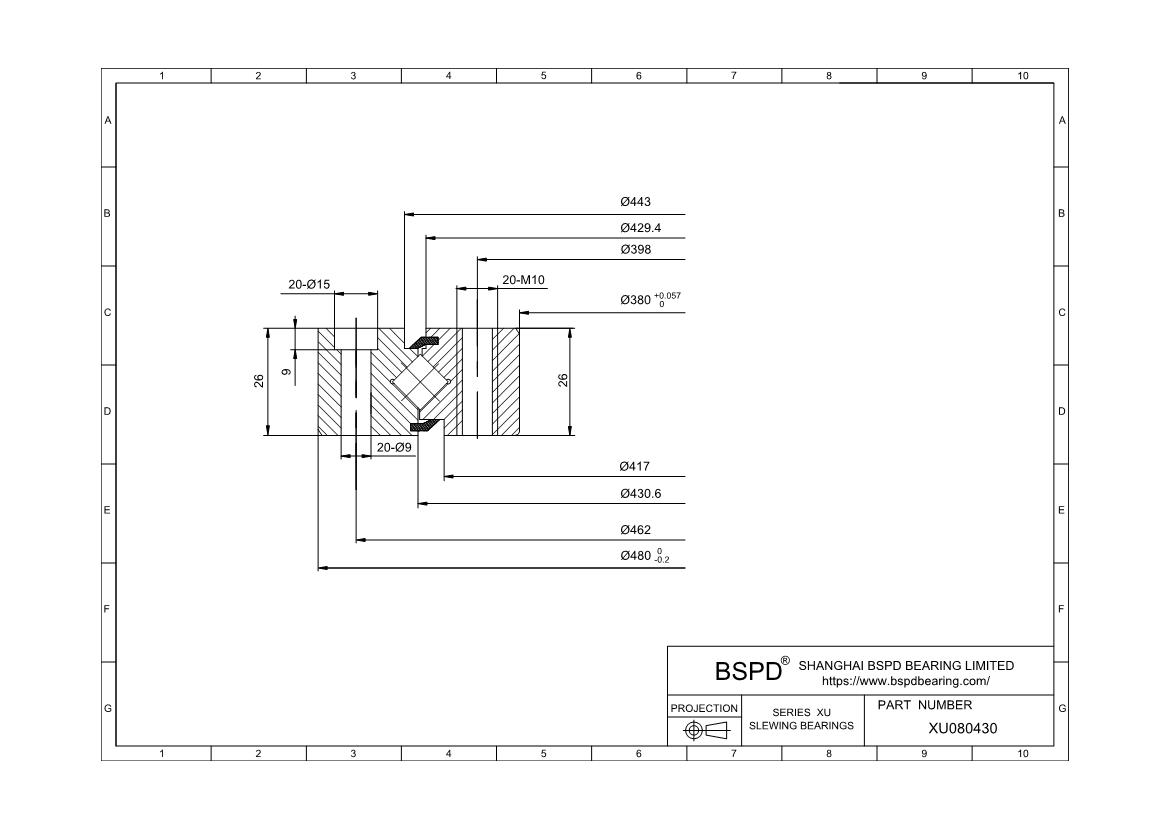

XU080430
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 380 mm； Outer Diameter: 480 mm； Width (Thickness): 26 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XU080430 |
| di | 380 mm |
| Da | 480 mm |
| DaZT | |
| Di | 430,6 mm |
| da | 429,4 mm |
| dB | 9 mm |
| dS | 15 mm |
| H | 26 mm |
| h | 26 mm |
| La | 462 mm |
| Li | 398 mm |
| Number of fixing holes in outer ring(na) | 20 |
| Number of fixing holes in inner ring(ni) | 20 |
| tS | 9 mm |
| weight(w) | 12 kg |
| Maximum permissible radial load against friction lock(Frper) | 35000 N |
| Basic dynamic load rating, axial(Ca) | 97000 N |
| Basic static load rating, axial(C0a) | 355000 N |
| Basic dynamic load rating, radial(Cr) | 69000 N |
| Basic static load rating, radial(C0r) | 175000 N |
| Bearing clearance: preload(VSPmin) | |
| Bearing clearance: preload(VSPmax) | 0,02 |
| With lip seal and special seal | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings XU080430 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
