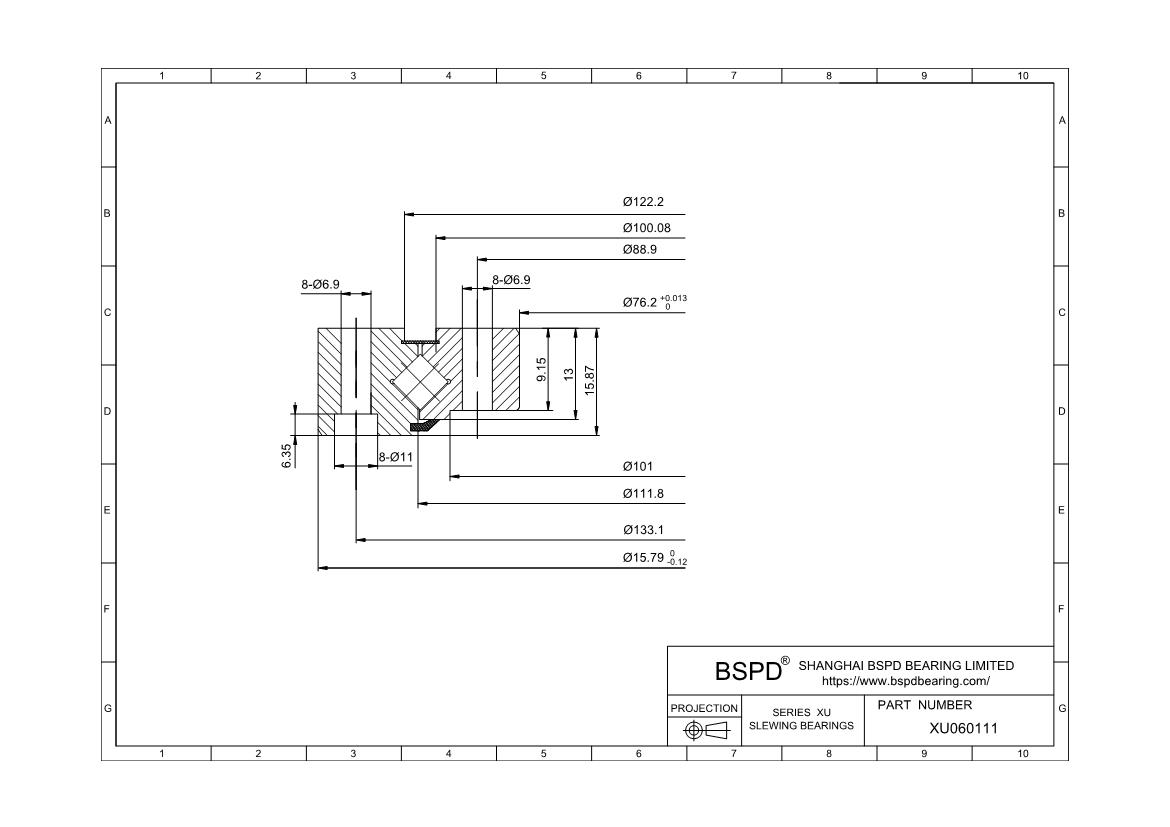

XU060111
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 76,2 mm； Outer Diameter: 145,79 mm； Width (Thickness): 15.87 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XU060111 |
| di | 76,2 mm |
| Da | 145,79 mm |
| DaZT | 145,79 mm |
| Di | 111,8 mm |
| da | |
| dB | 6,9 mm |
| dS | 11 mm |
| H | 15,87 mm |
| h | |
| La | 133,1 mm |
| Li | 88,9 mm |
| Number of fixing holes in outer ring(na) | 8 |
| Number of fixing holes in inner ring(ni) | 8 |
| tS | 6,35 mm |
| weight(w) | 1.2 kg |
| Maximum permissible radial load against friction lock(Frper) | 7700 N |
| Basic dynamic load rating, axial(Ca) | 31500 N |
| Basic static load rating, axial(C0a) | 57000 N |
| Basic dynamic load rating, radial(Cr) | 22500 N |
| Basic static load rating, radial(C0r) | 28000 N |
| Bearing clearance: preload(VSPmin) | 0,005 |
| Bearing clearance: preload(VSPmax) | 0,02 |
| With lip seal and special seal | |
Print PDF
Request a 3D CAD Model
