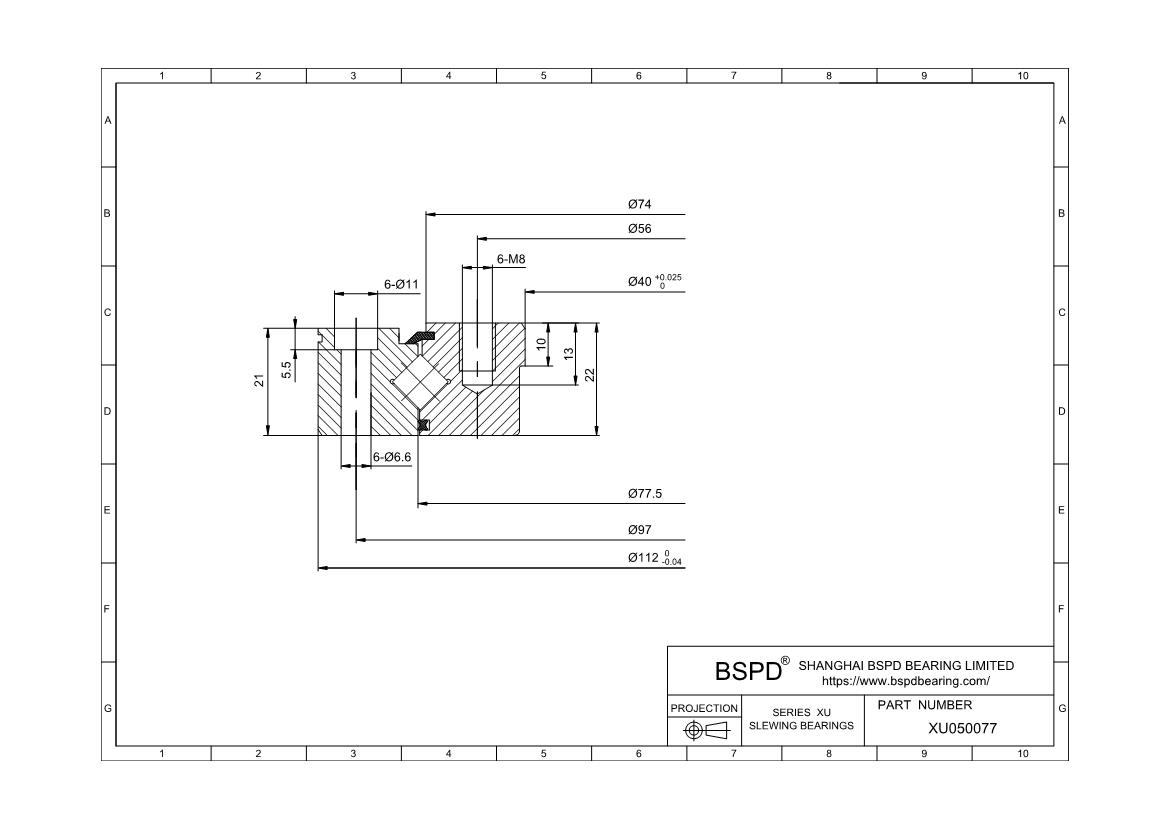

XU050077
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 40 mm； Outer Diameter: 112 mm； Width (Thickness): 22 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XU050077 |
| di | 40 mm |
| Da | 112 mm |
| DaZT | 112 mm |
| Di | 77,5 mm |
| da | 74 mm |
| dB | 6,6 mm |
| dS | 11 mm |
| H | 22 mm |
| h | 21 mm |
| La | 97 mm |
| Li | 56 mm |
| Number of fixing holes in outer ring(na) | 6 |
| Number of fixing holes in inner ring(ni) | 6 |
| tS | 5,5 mm |
| weight(w) | 1.4 kg |
| Maximum permissible radial load against friction lock(Frper) | 5800 N |
| Basic dynamic load rating, axial(Ca) | 19800 N |
| Basic static load rating, axial(C0a) | 41000 N |
| Basic dynamic load rating, radial(Cr) | 14100 N |
| Basic static load rating, radial(C0r) | 20100 N |
| Bearing clearance: preload(VSPmin) | 0,005 |
| Bearing clearance: preload(VSPmax) | 0,008 |
| With lip seal and special seal | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings XU050077 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
