XSI140644-N
INA Slewing Bearings

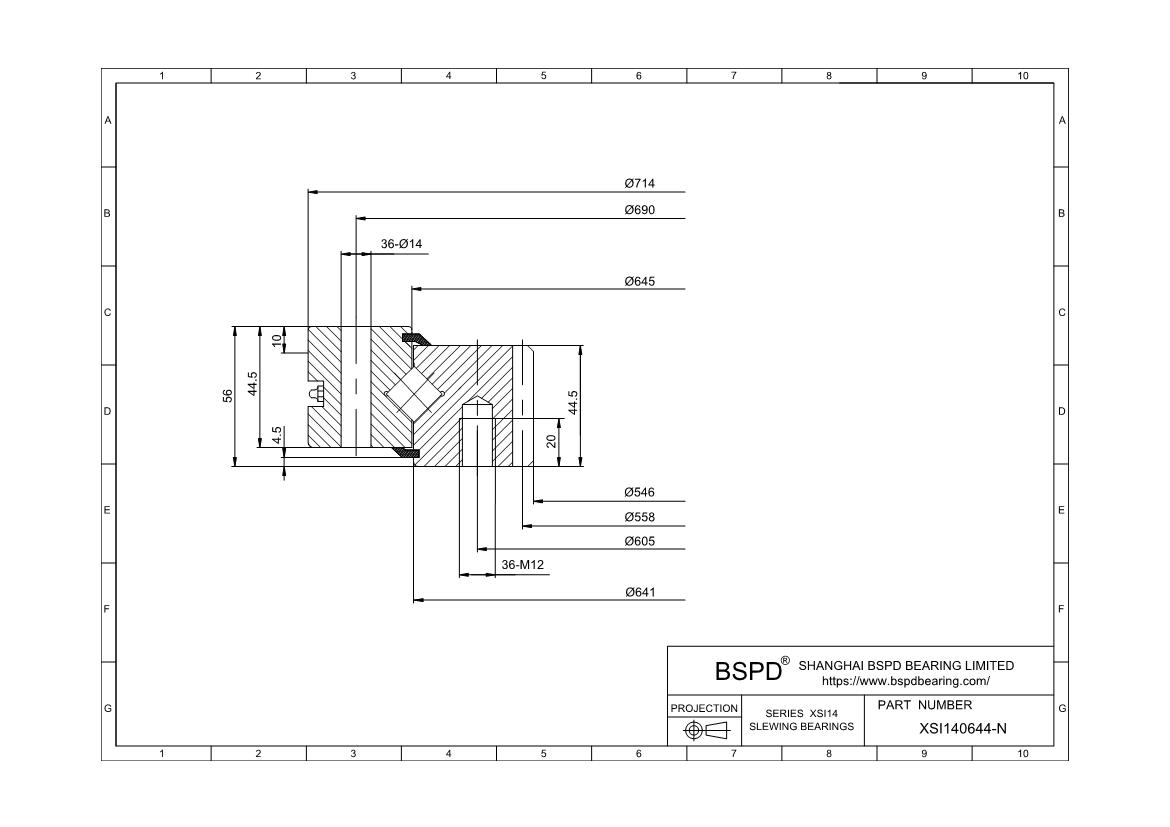

Dimensions: Bore (Inner) Diameter: 546 mm； Outer Diameter: 714 mm Centring lengths (see dimension drawing) Tolerance: -IT7； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | XSI140644-N |
| di | 546 mm |
| Da | 714 mm Centring lengths (see dimension drawing) Tolerance: -IT7 |
| Di | 645 mm Tolerance: +0,6/0 |
| d0 | 558 mm |
| da | 641 mm Centring lengths (see dimension drawing) Tolerance: -IT7 |
| H | 56 mm |
| La | 690 mm |
| Li | 605 mm |
| Tooth modulus | 6 mm |
| Number of fixing holes in outer ring(na) | 36 |
| Number of fixing holes in inner ring(ni) | 36 |
| Number of teeth(z) | 93 |
| weight(w) | 50 kg |
| Maximum permissible radial load against friction lock(Frper) | 148700 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 23700 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 35000 N |
| Basic dynamic load rating, axial(Ca) | 260000 N |
| Basic static load rating, axial(C0a) | 830000 N |
| Basic dynamic load rating, radial(Cr) | 183000 N |
| Basic static load rating, radial(C0r) | 405000 N |
| Bearing clearance: preload(VSPmin) | 0,01 |
| Bearing clearance: preload(VSPmax) | 0,04 |
| Running accuracies (in relation to raceway)(A) | 0,04 mm |
| Running accuracies (in relation to raceway)(B) | 0,04 mm |
| Running accuracies (in relation to raceway)© | 0,06 mm |
| Running accuracies (in relation to raceway)(D) | 0,06 mm |
| Taper type lubrication nipples, DIN 71412-A M8x1, spaced uniformly on circumference | 4 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings XSI140644-N ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
