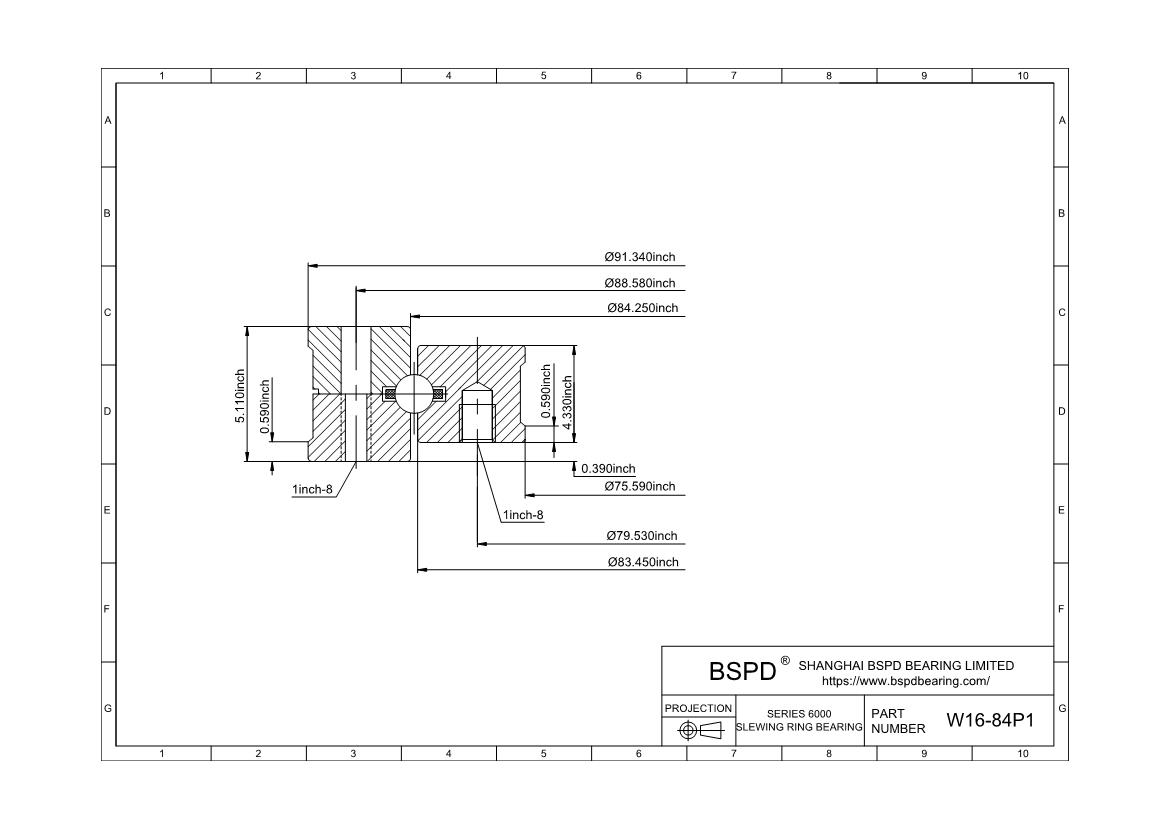

W16-84P1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 75.59"； Outer Diameter: 91.34"； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | W16-84P1 |
| Static Radial Capacity(lbs) | 204420 |
| Weight(lbs) | 2404 |
| Outline Dimensions(inches) | |
| OD | 91.340 |
| ID | 75.590 |
| OI | 84.25 |
| IO | 83.45 |
| OH | 5.11 |
| IH | 4.33 |
| K | .39 |
| PH | .59 |
| Mounting Holes | |
| OBC | 88.580 |
| OU | 1-8 |
| No of OBC Holes | 30 |
| IBC | 79.53 |
| IU | 1-8 |
| No of IBC Holes | 30 |
| Gear Data | |
| Tooth From 20 | |
| Gear Hardness(BHN) | |
| F | |
| NO of Teeth | |
| Max.allow tang.tooth load(lbs) | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings W16-84P1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
