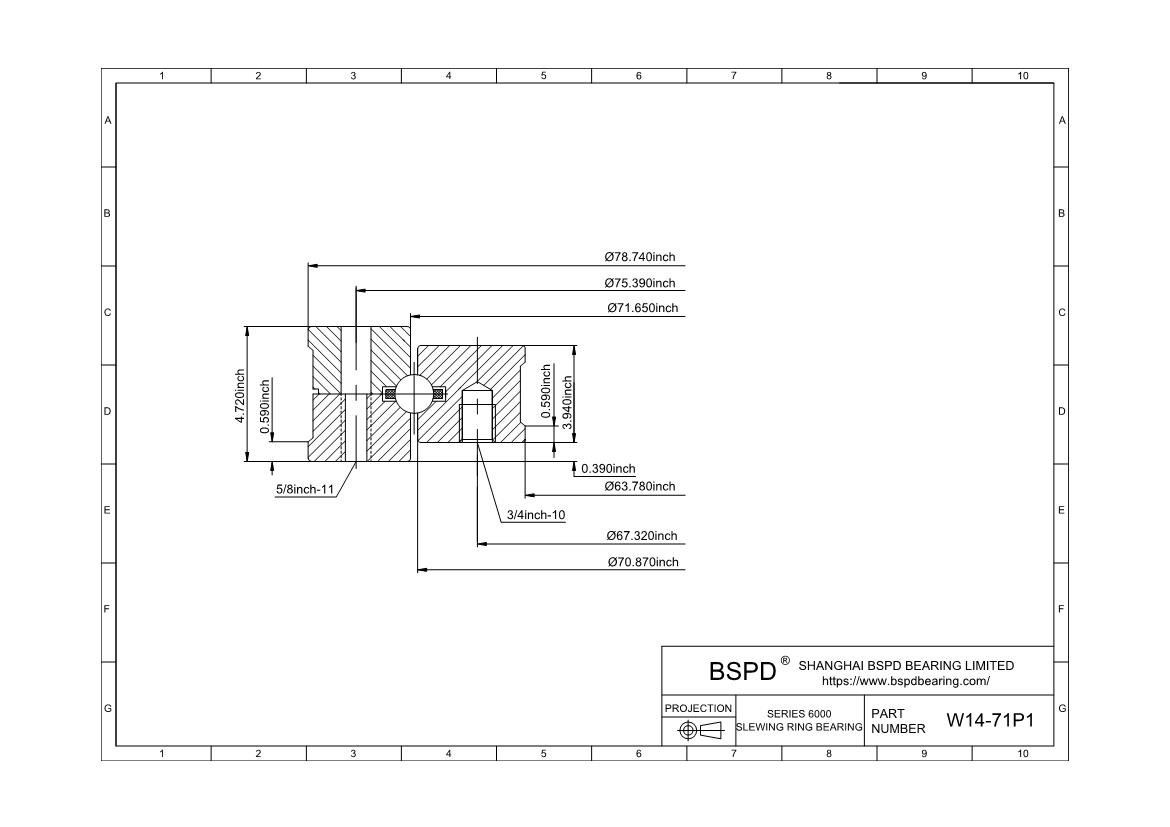

W14-71P1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 63.78"； Outer Diameter: 78.74"； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | W14-71P1 |
| Static Radial Capacity(lbs) | 166080 |
| Weight(lbs) | 1911 |
| Outline Dimensions(inches) | |
| OD | 78.740 |
| ID | 63.780 |
| OI | 71.65 |
| IO | 70.87 |
| OH | 4.72 |
| IH | 3.94 |
| K | .39 |
| PH | .59 |
| Mounting Holes | |
| OBC | 75.390 |
| OU | 5/8-10 |
| No of OBC Holes | 24 |
| IBC | 67.32 |
| IU | 3/4-10 |
| No of IBC Holes | 24 |
| Gear Data | |
| Tooth From 20 | |
| Gear Hardness(BHN) | |
| F | |
| NO of Teeth | |
| Max.allow tang.tooth load(lbs) | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings W14-71P1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
