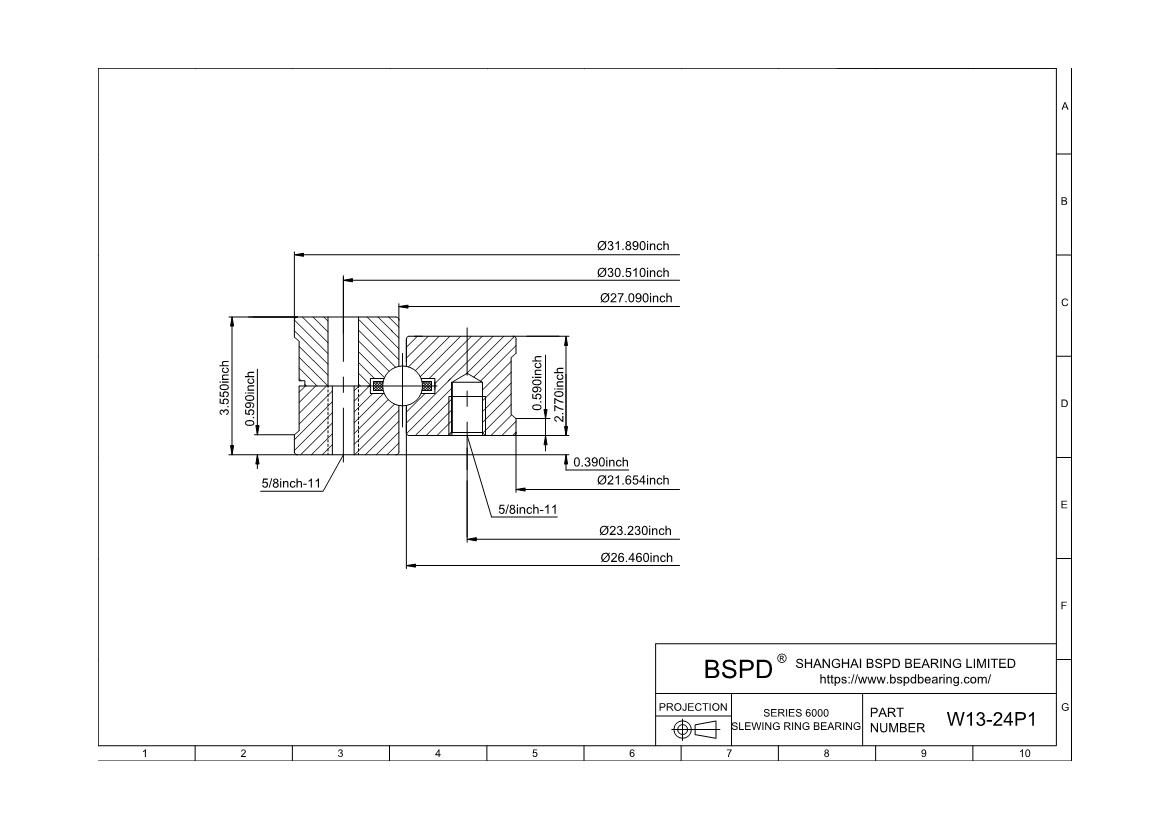

W13-24P1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 21.654"； Outer Diameter: 31.89"； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | W13-24P1 |
| Static Radial Capacity(lbs) | 53570 |
| Weight(lbs) | 368 |
| Outline Dimensions(inches) | |
| OD | 31.890 |
| ID | 21.654 |
| OI | 27.09 |
| IO | 26.46 |
| OH | 3.55 |
| IH | 2.77 |
| K | .39 |
| PH | .59 |
| Mounting Holes | |
| OBC | 30.510 |
| OU | 5/8-11 |
| No of OBC Holes | 12 |
| IBC | 23.23 |
| IU | 5/8-11 |
| No of IBC Holes | 12 |
| Gear Data | |
| Tooth From 20 | |
| Gear Hardness(BHN) | |
| F | |
| NO of Teeth | |
| Max.allow tang.tooth load(lbs) | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings W13-24P1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
