VSU251055
INA Slewing Bearings

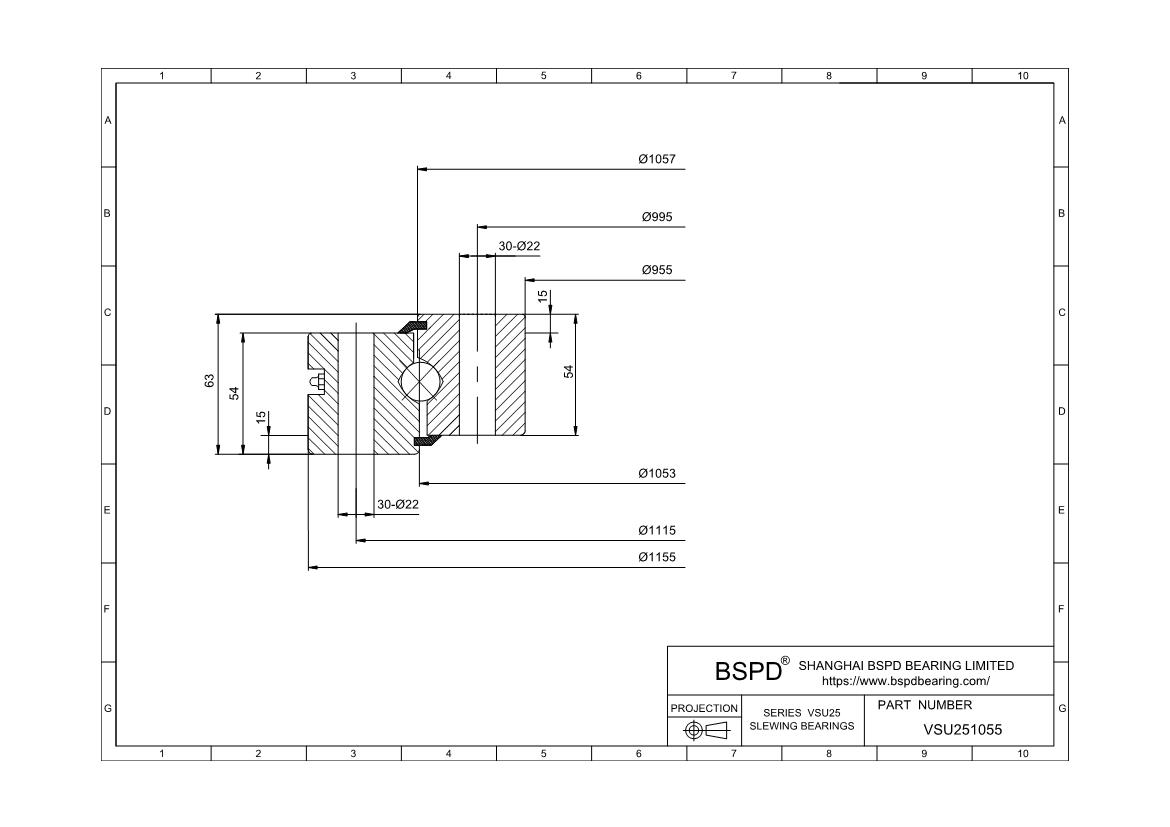

Dimensions: Bore (Inner) Diameter: 955 mm； Outer Diameter: 1155 mm； Width (Thickness): 63 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VSU251055 |
| di | 955 mm |
| Da | 1155 mm |
| DaZT | 1153 mm Tolerance: -IT8 |
| Di | 1053 mm |
| da | 1057 mm |
| diZT | 957 mm Tolerance: +IT8 |
| H | 63 mm |
| La | 1115 mm |
| Li | 995 mm |
| na | 30 |
| ni | 30 |
| weight(w) | 128 kg |
| Maximum permissible radial load against friction lock(Frper) | 363300 N |
| Basic dynamic load rating, axial(Ca) | 445000 N |
| Basic static load rating, axial(C0a) | 3750000 N |
| Basic dynamic load rating, radial(Cr) | 405000 N |
| Basic static load rating, radial(C0r) | 1720000 N |
| Min. radial bearing clearance | 0,03 |
| Maximum radial bearing clearance | 0,13 |
| Min. axial tilting clearance | 0,05 |
| Maximum axial tilting clearance | 0,24 |
| Taper type lubrication nipples, DIN 71412-A M10x1, spaced uniformly on circumference and recessed | 4 |
Print PDF
Request a 3D CAD Model
