VSU200744

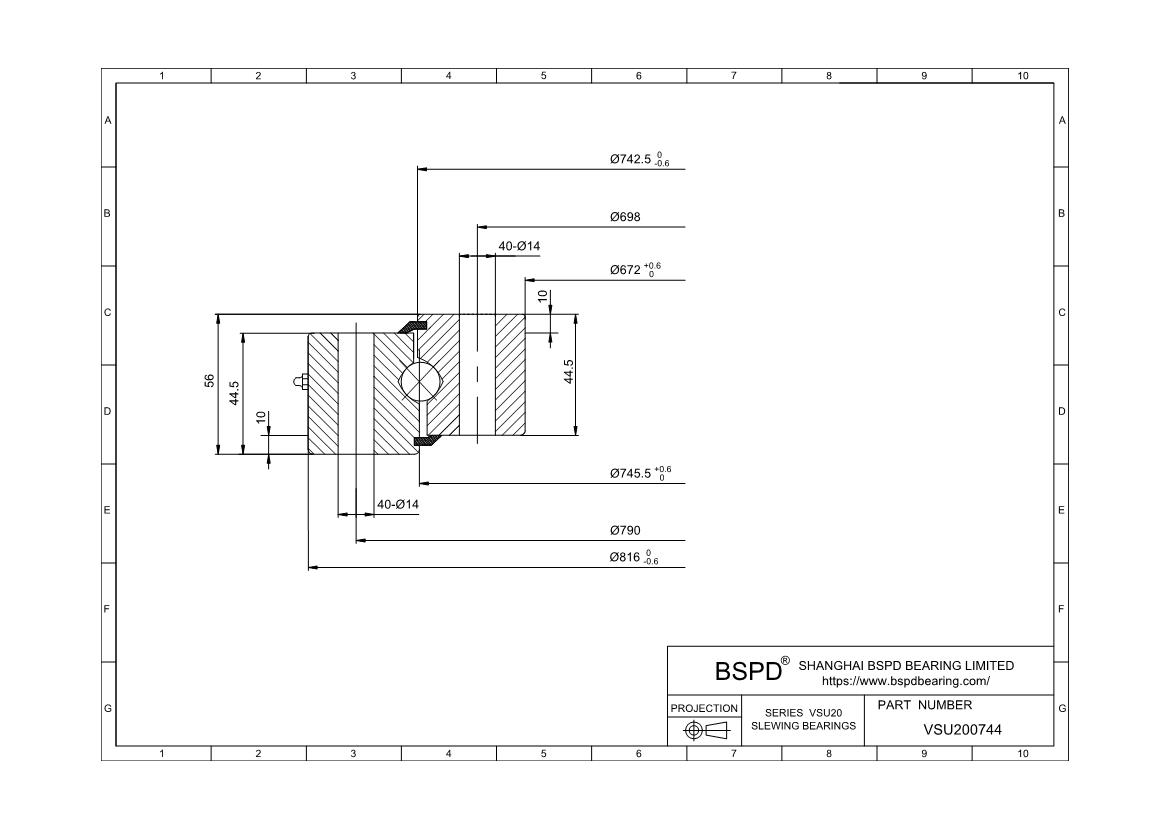

INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 672 mm Tolerance: +0,6/0； Outer Diameter: 816 mm Tolerance: 0/-0,6； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VSU200744 |
| di | 672 mm Tolerance: +0,6/0 |
| Da | 816 mm Tolerance: 0/-0,6 |
| DaZT | 814 mm Tolerance: -IT8 |
| Di | 745,5 mm Tolerance: +0,6/0 |
| da | 742,5 mm Tolerance: 0/-0,6 |
| diZT | 674 mm Tolerance: +IT8 |
| H | 56 mm |
| La | 790 mm |
| Li | 698 mm |
| na | 40 |
| ni | 40 |
| weight(w) | 52 kg |
| Maximum permissible radial load against friction lock(Frper) | 165200 N |
| Basic dynamic load rating, axial(Ca) | 173000 N |
| Basic static load rating, axial(C0a) | 1190000 N |
| Basic dynamic load rating, radial(Cr) | 157000 N |
| Basic static load rating, radial(C0r) | 550000 N |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VSU200744 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
