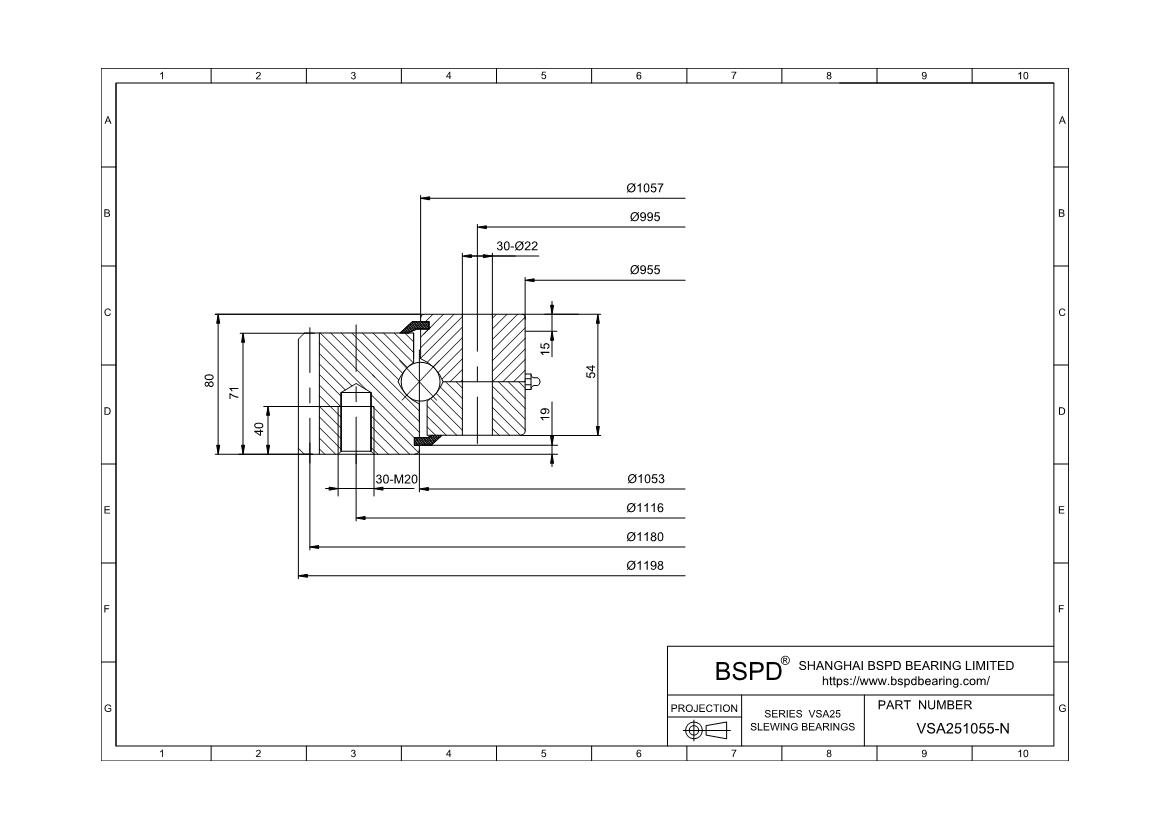

VSA251055-N
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 955 mm； Outer Diameter: 1198 mm； Width (Thickness): 80 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VSA251055-N |
| di | 955 mm |
| Da | 1198 mm |
| Di | 1053 mm |
| DiZT | 1055 mm Tolerance: +IT8 |
| d0 | 1180 mm |
| da | 1057 mm |
| diZT | 957 mm Tolerance: +IT8 |
| H | 80 mm |
| La | 1116 mm |
| Li | 995 mm |
| Tooth modulus | 10 mm |
| Number of fixing holes in outer ring(na) | 30 |
| Number of fixing holes in inner ring(ni) | 30 |
| Number of teeth(z) | 118 |
| weight(w) | 171 kg |
| Maximum permissible radial load against friction lock(Frper) | 363000 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 61200 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 89000 N |
| Basic dynamic load rating, axial(Ca) | 445000 N |
| Basic static load rating, axial(C0a) | 3750000 N |
| Basic dynamic load rating, radial(Cr) | 405000 N |
| Basic static load rating, radial(C0r) | 1720000 N |
| Min. radial bearing clearance | 0,03 |
| Maximum radial bearing clearance | 0,13 |
| Min. axial tilting clearance | 0,05 |
| Maximum axial tilting clearance | 0,24 |
| Taper type lubrication nipples, DIN 71412-A M10x1, spaced uniformly on circumference | 4 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VSA251055-N ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
