VLU200944
INA Slewing Bearings

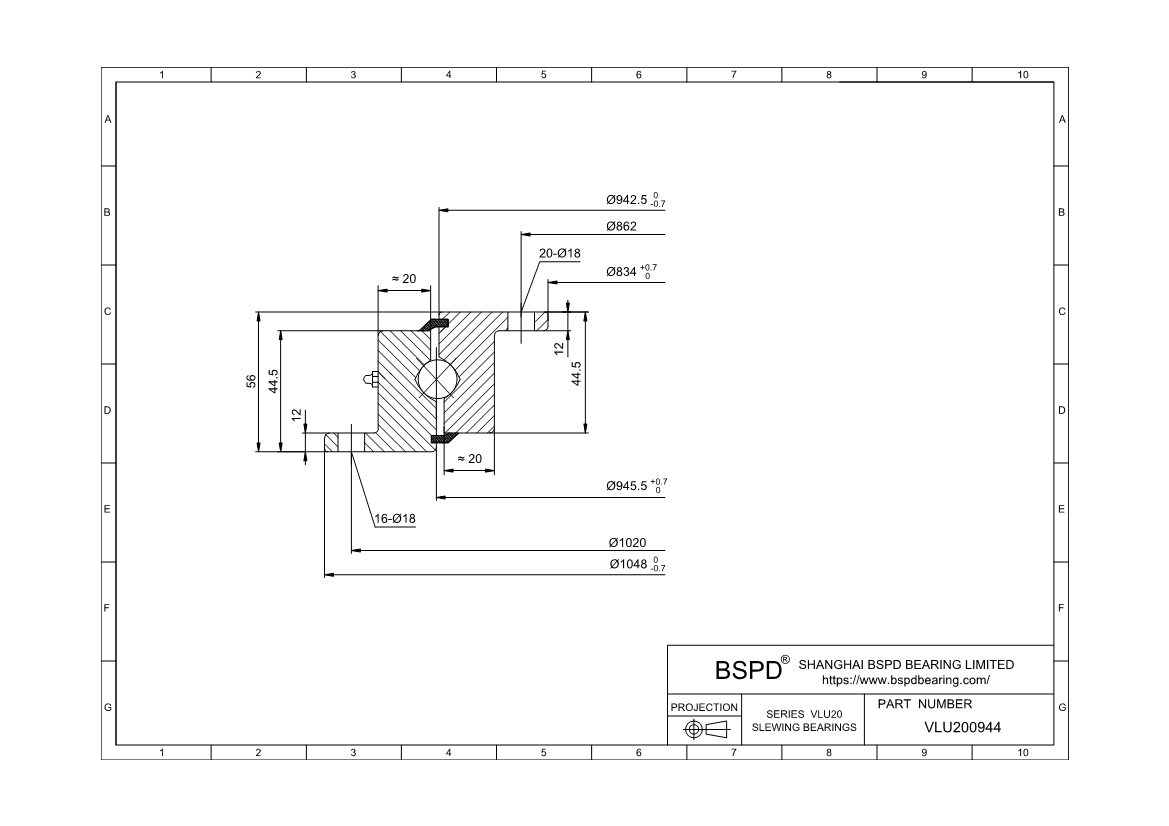

Dimensions: Bore (Inner) Diameter: 834 mm Tolerance: +0,7/0； Outer Diameter: 1048 mm Tolerance: 0/-0,7； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VLU200944 |
| di | 834 mm Tolerance: +0,7/0 |
| Da | 1048 mm Tolerance: 0/-0,7 |
| DaZT | 1046 mm Tolerance: -IT8 |
| Di | 945,5 mm Tolerance: +0,7/0 |
| da | 942,5 mm Tolerance: 0/-0,7 |
| diZT | 836 mm Tolerance: +IT8 |
| H | 56 mm |
| La | 1020 mm |
| Li | 862 mm |
| na | 16 |
| ni | 20 |
| weight(w) | 54 kg |
| Maximum permissible radial load against friction lock(Frper) | 124800 N |
| Basic dynamic load rating, axial(Ca) | 189000 N |
| Basic static load rating, axial(C0a) | 670000 N |
| Basic dynamic load rating, radial(Cr) | 171000 N |
| Basic static load rating, radial(C0r) | 250000 N |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
| Bearings are also available without holes in the bearing rings | YES |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VLU200944 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
