VLU200844
INA Slewing Bearings

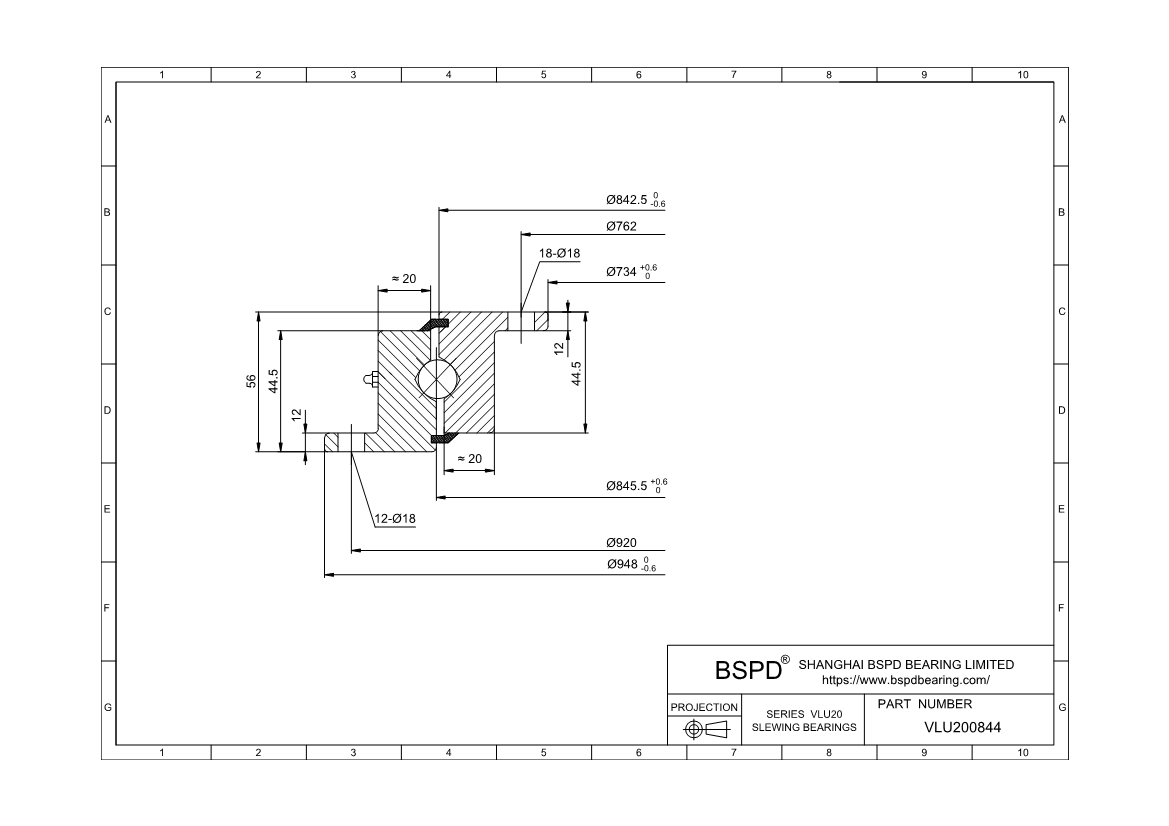

Dimensions: Bore (Inner) Diameter: 734 mm Tolerance: +0,6/0； Outer Diameter: 948 mm Tolerance: 0/-0,6； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VLU200844 |
| di | 734 mm Tolerance: +0,6/0 |
| Da | 948 mm Tolerance: 0/-0,6 |
| DaZT | 946 mm Tolerance: -IT8 |
| Di | 845,5 mm Tolerance: +0,6/0 |
| da | 842,5 mm Tolerance: 0/-0,6 |
| diZT | 736 mm Tolerance: +IT8 |
| H | 56 mm |
| La | 920 mm |
| Li | 762 mm |
| na | 14 |
| ni | 18 |
| weight(w) | 48 kg |
| Maximum permissible radial load against friction lock(Frper) | 109200 N |
| Basic dynamic load rating, axial(Ca) | 182000 N |
| Basic static load rating, axial(C0a) | 600000 N |
| Basic dynamic load rating, radial(Cr) | 164000 N |
| Basic static load rating, radial(C0r) | 224000 N |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
| Bearings are also available without holes in the bearing rings | YES |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VLU200844 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
