VLU200414
INA Slewing Bearings

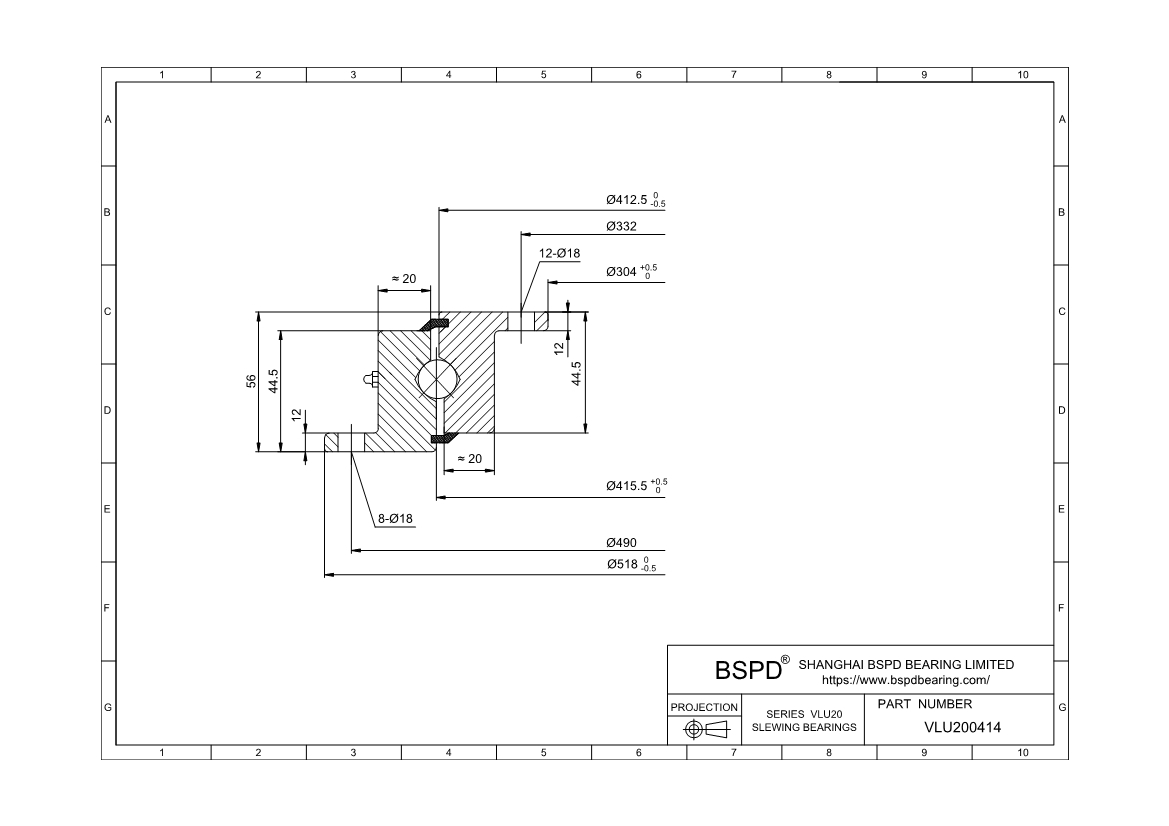

Dimensions: Bore (Inner) Diameter: 304 mm Tolerance: +0,5/0； Outer Diameter: 518 mm Tolerance: 0/-0,5； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VLU200414 |
| di | 304 mm Tolerance: +0,5/0 |
| Da | 518 mm Tolerance: 0/-0,5 |
| DaZT | 516 mm Tolerance: -IT8 |
| Di | 415,5 mm Tolerance: +0,5/0 |
| da | 412,5 mm Tolerance: 0/-0,5 |
| diZT | 306 mm Tolerance: +IT8 |
| H | 56 mm |
| La | 490 mm |
| Li | 332 mm |
| na | 8 |
| ni | 12 |
| weight(w) | 23,5 kg |
| Maximum permissible radial load against friction lock(Frper) | 55000 N |
| Basic dynamic load rating, axial(Ca) | 139000 N |
| Basic static load rating, axial(C0a) | 295000 N |
| Basic dynamic load rating, radial(Cr) | 126000 N |
| Basic static load rating, radial(C0r) | 110000 N |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
| Bearings are also available without holes in the bearing rings | YES |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VLU200414 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
