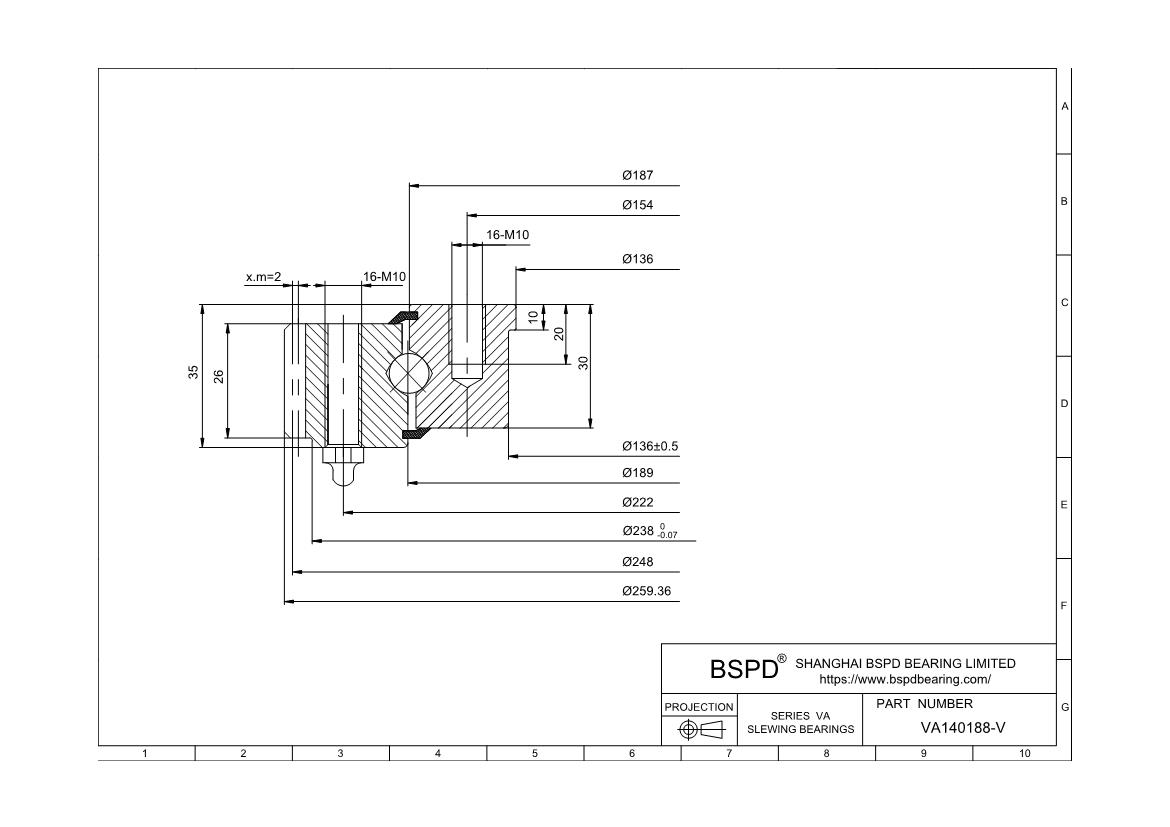

VA140188-V
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 136 mm； Outer Diameter: 259,36 mm； Width (Thickness): 35 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VA140188-V |
| di | 136 mm |
| Da | 259,36 mm |
| b | 26 mm |
| Di | 189 mm |
| DiZT | 238 mm |
| d0 | 248 mm |
| da | 187 mm |
| dB | |
| diZT | 135 mm |
| H | 35 mm |
| h | 30 mm |
| La | 222 mm |
| Li | 154 mm |
| Tooth modulus | 4 mm |
| Number of fixing holes in outer ring(na) | 16 |
| Number of fixing holes in inner ring(ni) | 16 |
| T | |
| t | |
| Number of teeth(z) | 62 |
| weight(w) | 7,5 kg |
| Maximum permissible radial load against friction lock(Frper) | 44800 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 10400 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 15300 N |
| Basic dynamic load rating, axial(Ca) | 94000 N |
| Basic static load rating, axial(C0a) | 680000 N |
| Basic dynamic load rating, radial(Cr) | 85000 N |
| Basic static load rating, radial(C0r) | 270000 N |
| Min. radial bearing clearance | 0,03 |
| Maximum radial bearing clearance | 0,1 |
| Min. axial tilting clearance | 0,05 |
| Maximum axial tilting clearance | 0,2 |
| Taper type lubrication nipples, DIN 71412-A M10x1, spaced uniformly on circumference | 2 |
| Lip seals on both spides | YES |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VA140188-V ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
