T01-00675PAA
TT Thin Section Turntable Bearings

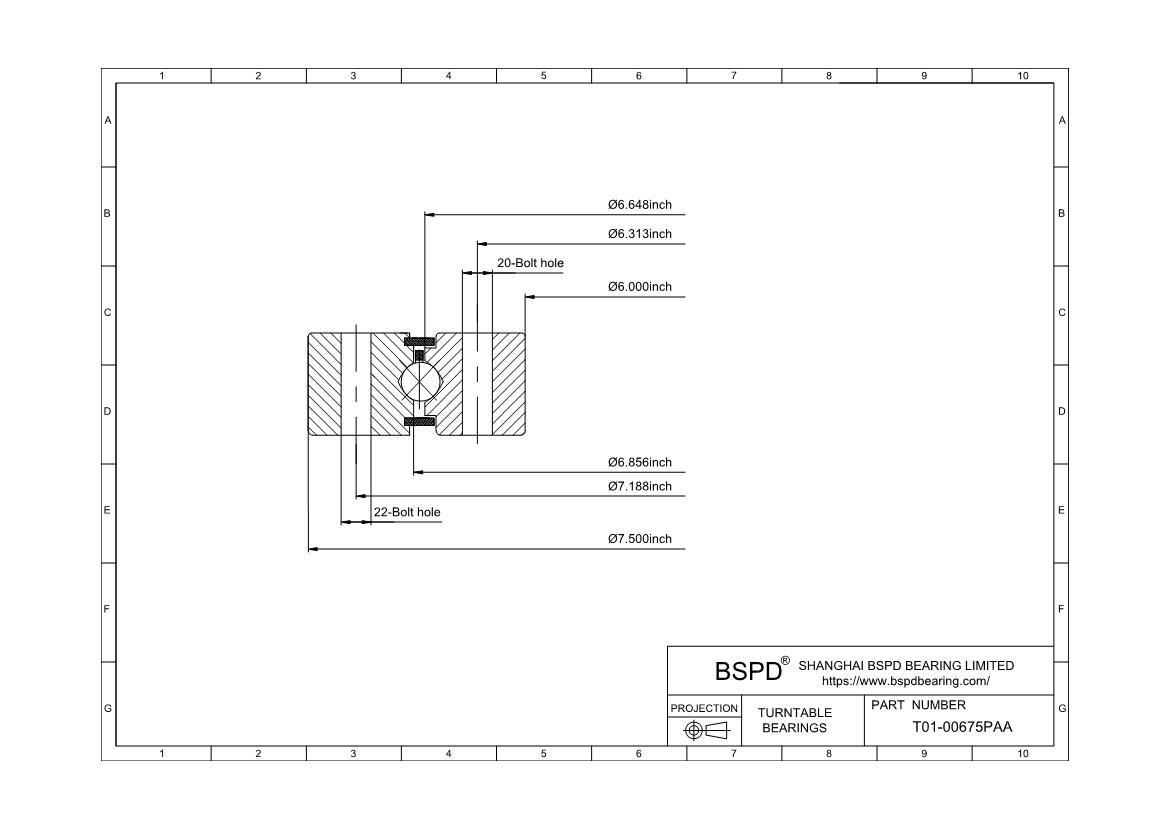

Dimensions: Bore (Inner) Diameter: 6.000"； Outer Diameter: 7.500"； Width (Thickness): 0.25";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Part Number | T01-00675PAA | |
| gear | no gear | |
| Bore Dia (d) | 6.000 | |
| Outer Dia (D) | 7.500 | |
| Inner Land | 6.648 | |
| Oueter Land | 6.856 | |
| Width (B) | 0.25 | |
| Inner Bolt Circle | 6.313 | |
| Number of holes | 20 | |
| Outer Bolt Circle | 7.188 | |
| Gear pitich diameter(in) | ||
| Number of teeth | ||
| Dynamic(lbs) | Thrust | 1;650 |
| Radial | 1;000 | |
| Moment | 2;530 | |
| Static (lbs) | Thrust | 5;120 |
| Radial | 2;050 | |
| Moment | 6;910 | |
| Static Torque | 12.2 | |
| Weight (lbs) | 1.05 | |
Print PDF
Request a 3D CAD Model
