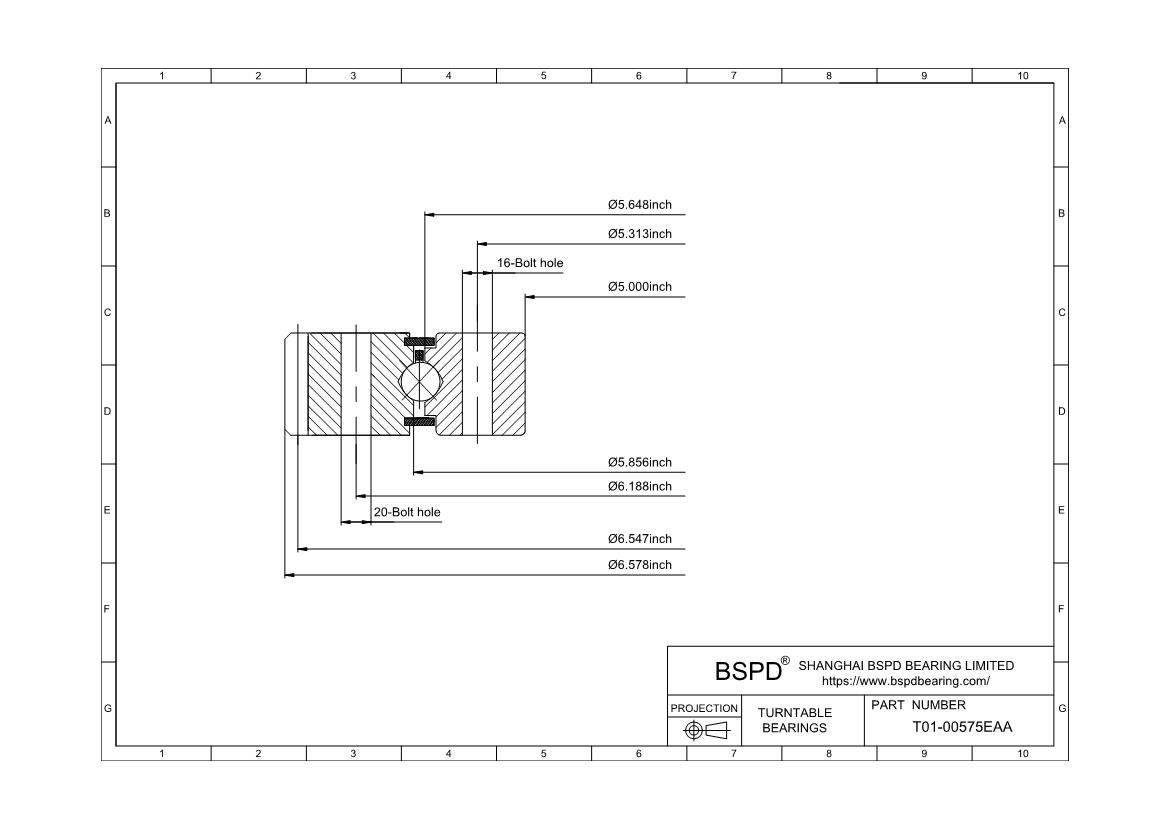

T01-00575EAA
TT Thin Section Turntable Bearings
Dimensions: Bore (Inner) Diameter: 5.000"； Outer Diameter: 6.578"； Width (Thickness): 0.25";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Part Number | T01-00575EAA | |
| gear | External gear | |
| Bore Dia (d) | 5.000 | |
| Outer Dia (D) | 6.578 | |
| Inner Land | 5.648 | |
| Oueter Land | 5.856 | |
| Width (B) | 0.25 | |
| Inner Bolt Circle | 5.313 | |
| Number of holes | 20 | |
| Outer Bolt Circle | 6.188 | |
| Gear pitich diameter(in) | 6.547 | |
| Number of teeth | 419 | |
| Dynamic(lbs) | Thrust | 1;480 |
| Radial | 910 | |
| Moment | 1;950 | |
| Static (lbs) | Thrust | 4;360 |
| Radial | 1;750 | |
| Moment | 5;020 | |
| Static Torque | 10.4 | |
| Weight (lbs) | 0.89 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings T01-00575EAA ? TT Thin Section Turntable Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
