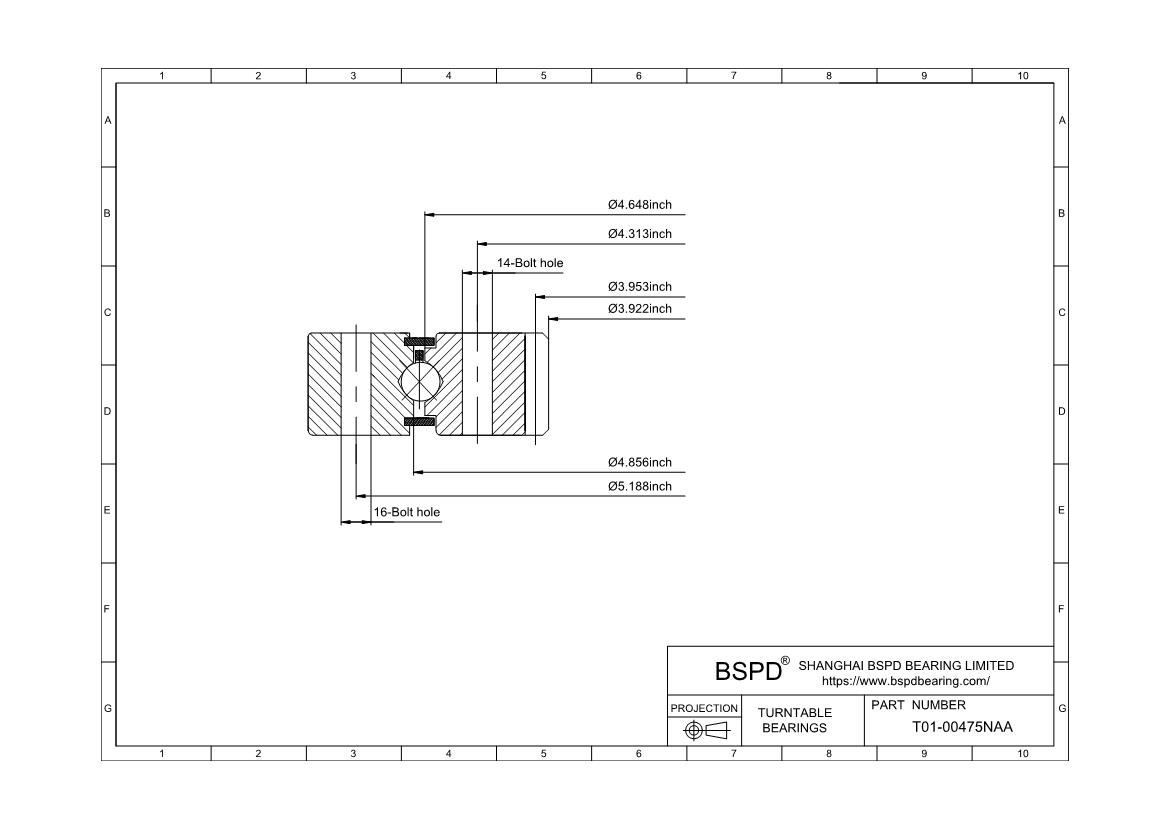

T01-00475NAA
TT Thin Section Turntable Bearings
Dimensions: Bore (Inner) Diameter: 3.922"； Outer Diameter: 5.500"； Width (Thickness): 0.25";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Part Number | T01-00475NAA | |
| gear | Internal gear | |
| Bore Dia (d) | 3.922 | |
| Outer Dia (D) | 5.500 | |
| Inner Land | 4.648 | |
| Oueter Land | 4.856 | |
| Width (B) | 0.25 | |
| Inner Bolt Circle | 4.313 | |
| Number of holes | 14 | |
| Outer Bolt Circle | 5.188 | |
| Gear pitich diameter(in) | 3.953 | |
| Number of teeth | 253 | |
| Dynamic(lbs) | Thrust | 1;310 |
| Radial | 810 | |
| Moment | 1;440 | |
| Static (lbs) | Thrust | 3;600 |
| Radial | 1;440 | |
| Moment | 3;420 | |
| Static Torque | 8.5 | |
| Weight (lbs) | 0.74 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings T01-00475NAA ? TT Thin Section Turntable Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
