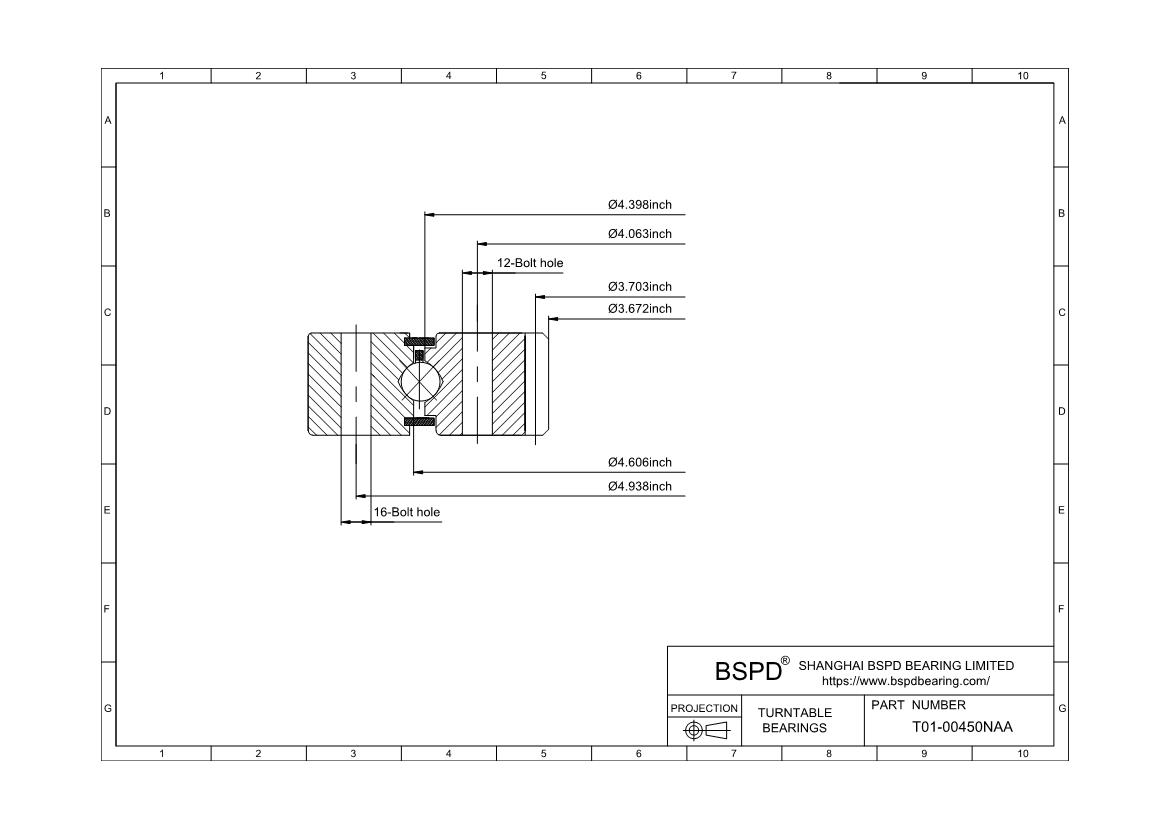

T01-00450NAA
TT Thin Section Turntable Bearings
Dimensions: Bore (Inner) Diameter: 3.672"； Outer Diameter: 5.250"； Width (Thickness): 0.25";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Part Number | T01-00450NAA | |
| gear | Internal gear | |
| Bore Dia (d) | 3.672 | |
| Outer Dia (D) | 5.250 | |
| Inner Land | 4.398 | |
| Oueter Land | 4.606 | |
| Width (B) | 0.25 | |
| Inner Bolt Circle | 4.063 | |
| Number of holes | 12 | |
| Outer Bolt Circle | 4.938 | |
| Gear pitich diameter(in) | 3.703 | |
| Number of teeth | 237 | |
| Dynamic(lbs) | Thrust | 1;260 |
| Radial | 780 | |
| Moment | 1;320 | |
| Static (lbs) | Thrust | 3;410 |
| Radial | 1;370 | |
| Moment | 3;070 | |
| Static Torque | 7.9 | |
| Weight (lbs) | 0.70 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings T01-00450NAA ? TT Thin Section Turntable Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
