T01-00450EAA
TT Thin Section Turntable Bearings
Dimensions: Bore (Inner) Diameter: 3.750"; Outer Diameter: 5.328"; Width (Thickness): 0.25";
![T01-00450EAA](https://www.bspdbearing.com/wp-content/uploads/2021/06/thin7.jpg)
REQUEST FOR QUOTE
Product Attributes
Bearing Type | Ball | |
For Load Direction | Four Point | |
Construction | Single Row | |
Part Number | T01-00450EAA | |
gear | External gear | |
Bore Dia (d) | 3.750 | |
Outer Dia (D) | 5.328 | |
Inner Land | 4.398 | |
Oueter Land | 4.606 | |
Width (B) | 0.25 | |
Inner Bolt Circle | 4.063 | |
Number of holes | 16 | |
Outer Bolt Circle | 4.938 | |
Gear pitich diameter(in) | 5.297 | |
Number of teeth | 339 | |
Dynamic(lbs) | Thrust | 1;260 |
Radial | 780 | |
Moment | 1;320 | |
Static (lbs) | Thrust | 3;410 |
Radial | 1;370 | |
Moment | 3;070 | |
Static Torque | 7.9 | |
Weight (lbs) | 0.70 |

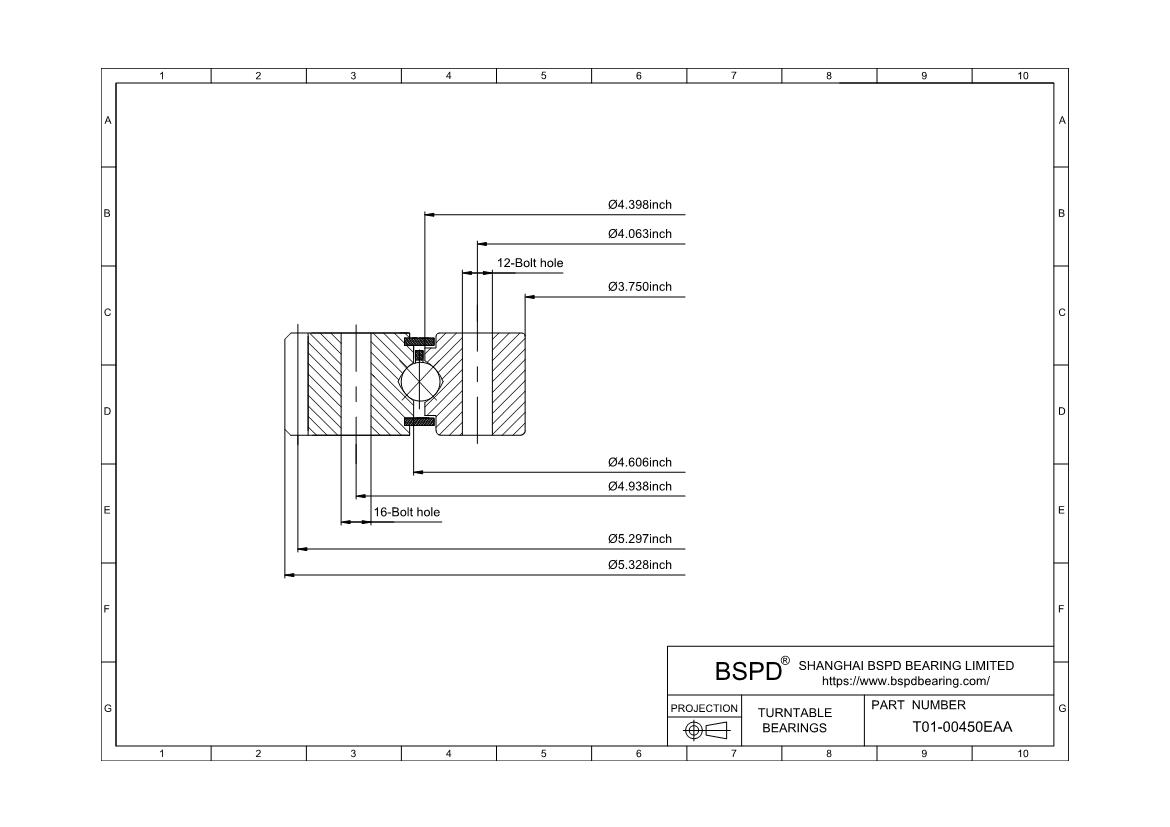

![T01-00450EAA](/wp-content/uploads/pdf/T01-00450EAA/1.jpg)
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings T01-00450EAA ? TT Thin Section Turntable Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
