T01-00325PAA
TT Thin Section Turntable Bearings
Dimensions: Bore (Inner) Diameter: 2.500"; Outer Diameter: 4.000"; Width (Thickness): 0.25";
![T01-00325PAA](https://www.bspdbearing.com/wp-content/uploads/2021/06/thin7.jpg)
REQUEST FOR QUOTE
Product Attributes
Bearing Type | Ball | |
For Load Direction | Four Point | |
Construction | Single Row | |
Part Number | T01-00325PAA | |
gear | no gear | |
Bore Dia (d) | 2.500 | |
Outer Dia (D) | 4.000 | |
Inner Land | 3.148 | |
Oueter Land | 3.356 | |
Width (B) | 0.25 | |
Inner Bolt Circle | 2.813 | |
Number of holes | 9 | |
Outer Bolt Circle | 3.688 | |
Gear pitich diameter(in) | ||
Number of teeth | ||
Dynamic(lbs) | Thrust | 1;010 |
Radial | 640 | |
Moment | 780 | |
Static (lbs) | Thrust | 2;470 |
Radial | 990 | |
Moment | 1;600 | |
Static Torque | 5.5 | |
Weight (lbs) | 0.50 |

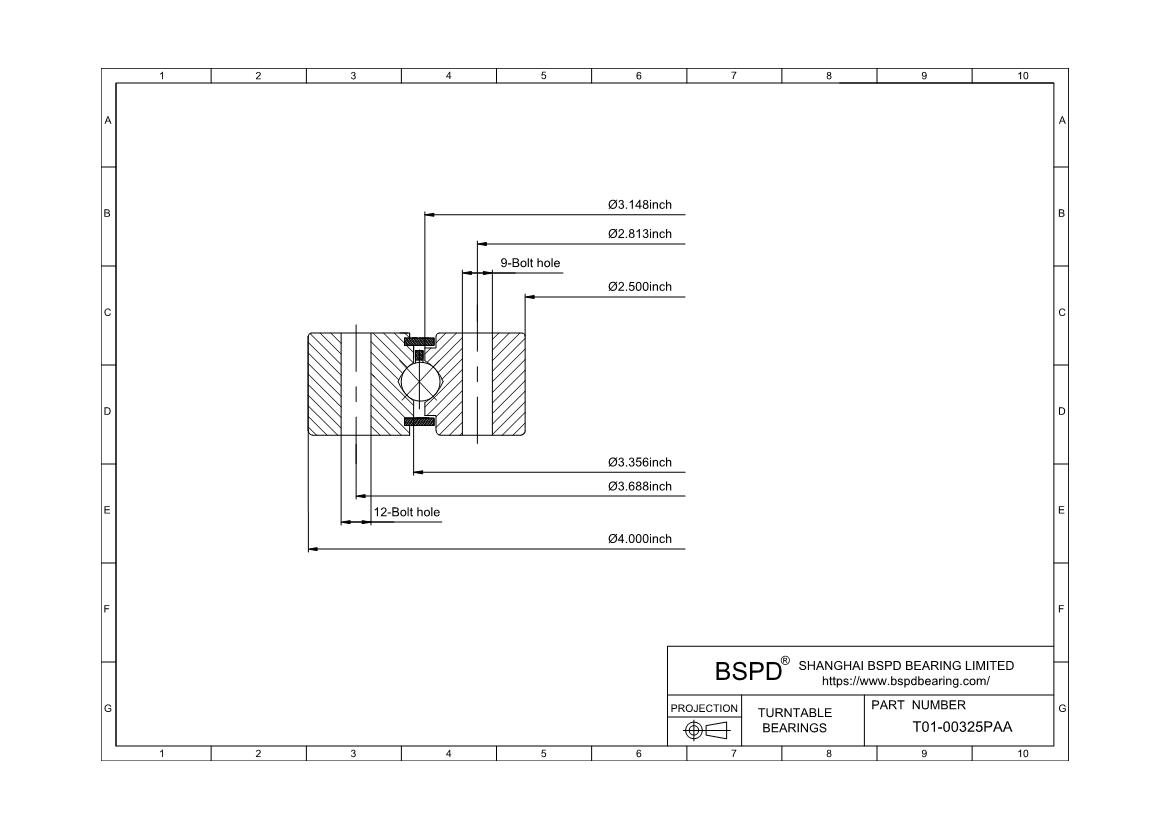

![T01-00325PAA](/wp-content/uploads/pdf/T01-00325PAA/1.jpg)
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings T01-00325PAA ? TT Thin Section Turntable Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
