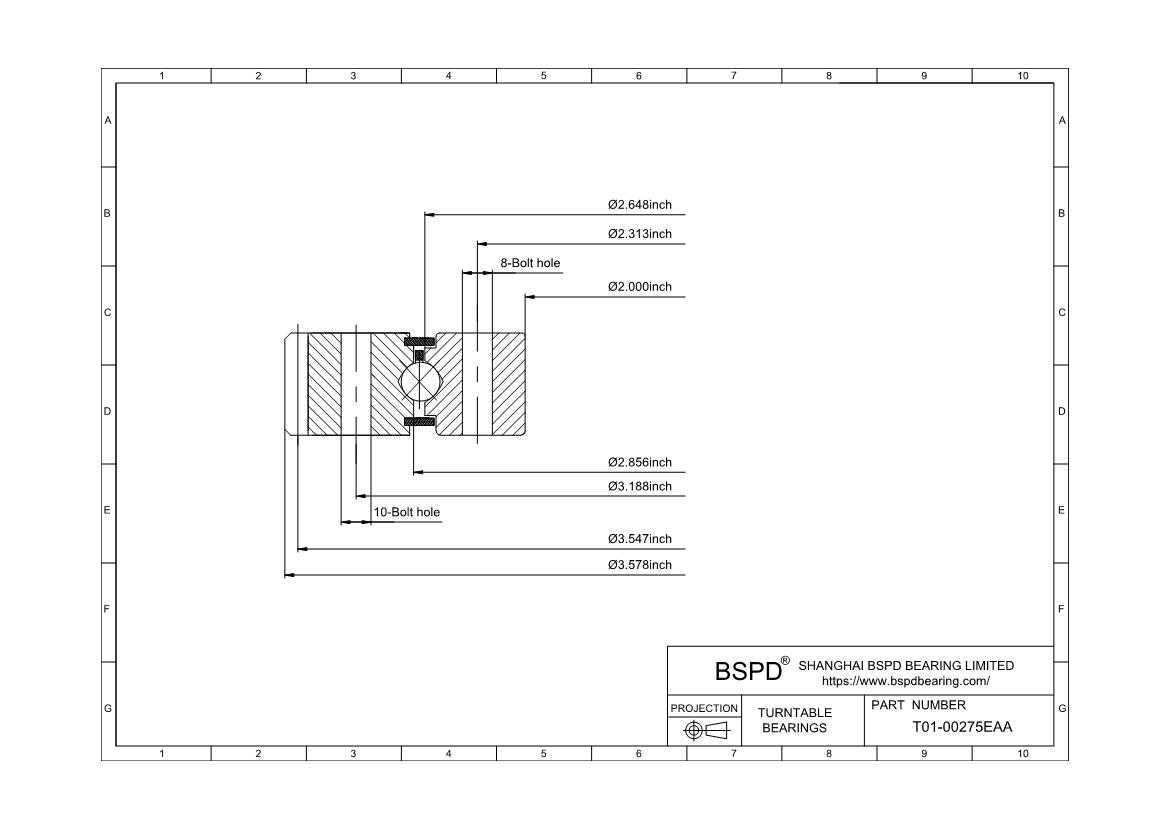

T01-00275EAA
TT Thin Section Turntable Bearings
Dimensions: Bore (Inner) Diameter: 2.000"； Outer Diameter: 3.578"； Width (Thickness): 0.25";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball | |
| For Load Direction | Four Point | |
| Construction | Single Row | |
| Part Number | T01-00275EAA | |
| gear | External gear | |
| Bore Dia (d) | 2.000 | |
| Outer Dia (D) | 3.578 | |
| Inner Land | 2.648 | |
| Oueter Land | 2.856 | |
| Width (B) | 0.25 | |
| Inner Bolt Circle | 2.313 | |
| Number of holes | 10 | |
| Outer Bolt Circle | 3.188 | |
| Gear pitich diameter(in) | 3.547 | |
| Number of teeth | 227 | |
| Dynamic(lbs) | Thrust | 910 |
| Radial | 580 | |
| Moment | 600 | |
| Static (lbs) | Thrust | 2;090 |
| Radial | 830 | |
| Moment | 1;150 | |
| Static Torque | 4.4 | |
| Weight (lbs) | 0.43 | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings T01-00275EAA ? TT Thin Section Turntable Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
