SX011868 Crossed Roller TYPE

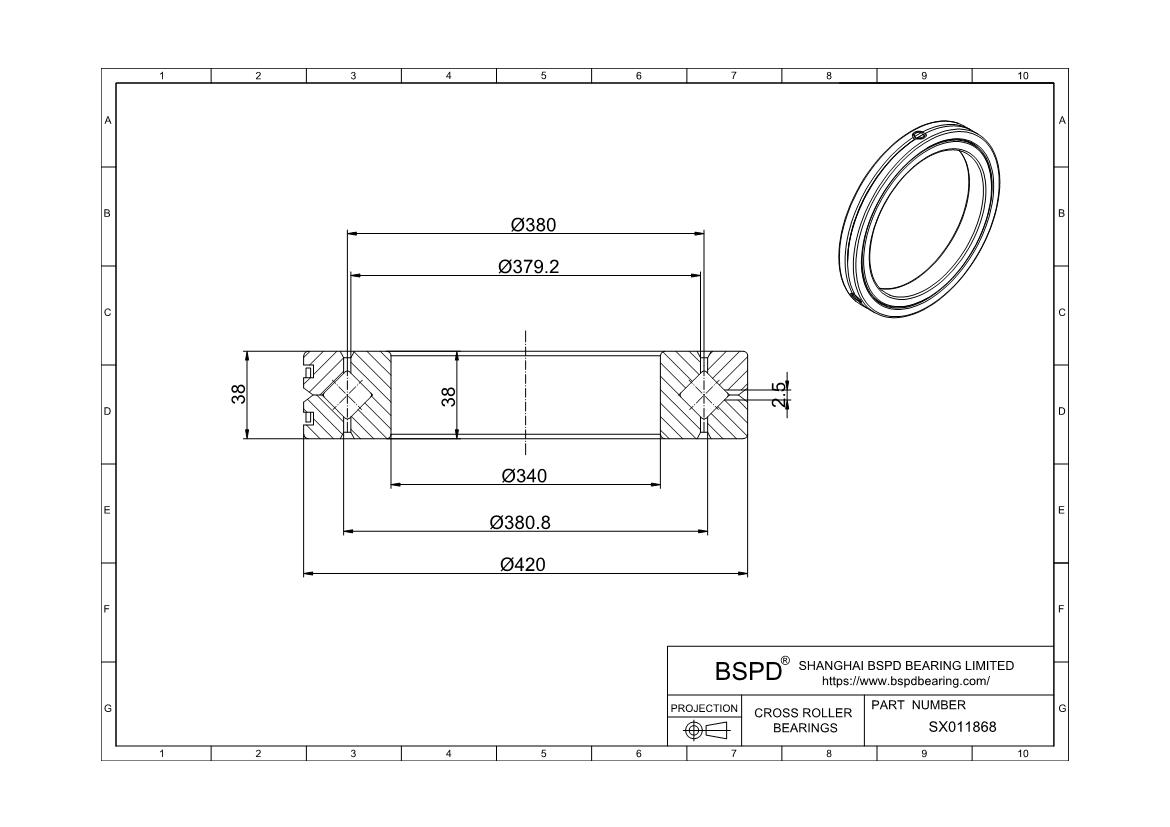

Dimensions: Bore (Inner) Diameter: 340 mm； Outer Diameter: 420 mm； Width (Thickness): 38 mm;

SX011868
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bore Diameter(d1) 340 mm
Bore diameter upper tolerance 0.007
Bore diameter lower tolerance -0.029
Outside Diameter(Da) 420 mm
Outside diameter lower tolerance -0.04
Height(H) 38 mm
Width upper tolerance 0.14
Width lower tolerance -0.14
Weight 12.9 kg
Di 380.8 mm
DM 380 mm
da 379.2 mm
height of individual ring(h) 38 mm
Height of individual ring lower tolerance -0.05
rmin 2.1 mm
S 2.5 mm
Running accuracy, radial 0.025 mm
Running accuracy, axial 0.01 mm
Min. radial bearing clearance(S rmin) 0.01 mm
Maximum radial bearing clearance(S rmax) 0.04 mm
Min. axial tilting clearance(Sk min) 0.02 mm
Maximum axial tilting clearance(Sk max) 0.08 mm
Low clearance: Radial clearance(RLOmax) 0.005 mm
Low clearance: Preload(RLOmax) 0.01 mm
Min. bearing preload(VSPmin) 0.005 mm
Maximum bearing preload(VSPmax) 0.025 mm
Basic dynamic load rating, axial(Ca) 265000 N
Basic static load rating, axial(C0a) 1130000 N
Basic dynamic load rating, radial (for radial load only)(Cr) 187000 N
Basic static load rating, radial (for radial load only)(C0r) 550000 N
Limiting speed for oil lubrication with normal clearance(NG oil) 200 1/min
Limiting speed for grease lubrication with normal clearance(NG Grease) 200 1/min
Limiting speed for oil lubrication with preload(NG oil) 400 1/min
Limiting speed for grease lubrication with preload(NG Grease) 100 1/min
Dimensions identical to ISO dimension series 18 61868
Operating temperature min.(Tmin) -30 °C
Operating temperature max.(Tmax) 80 °C
SX011868
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings SX011868 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
