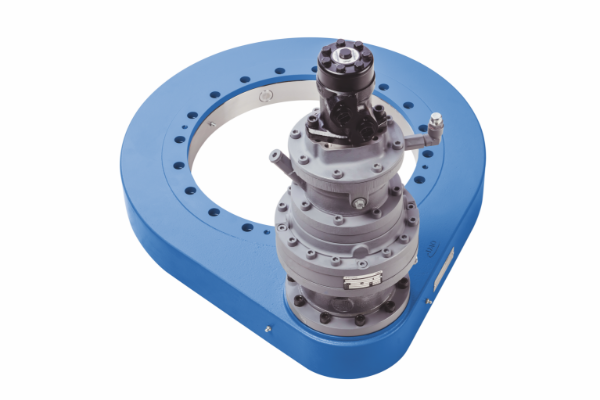

SP-H 0755 IMO Slewing Rings & Slewing drives
Dimensions: Bore (Inner) Diameter: ； Outer Diameter: ； Width (Thickness): ;

Product Attributes

Specifications
Part Number	SP-H 0755
Module (m) (mm)	8
Number of teeth wheel (z2)	110
Number of teeth pinion (z1)	15
Slew drive gear ratio (i)	7.33
Overall gear raito incl.gear box (I tot)	132.73
Max.torque (Md max) (Nm)	42279
Nom.torques Sf=1 n=5 min-1 (Md nom) (Nm)	28204
Max.holding torque* (Mh max) (Nm)	42279
Static load rating, radial (Co rad) (KN)	916
Static load rating,aixal (Co ax) (KN)	2452
Dynamic load rating, radial (Crad) (KN)	336
Dynamic load rating,axial (Cax) (KN)	393
Weight,incl 11kg for hydraulic motor RE160 (KG)	268
Optionally with brake
The hydraulic/electric motor is selected according to the
actual requirements and customer specification
Selection example
Performance data with hydraulic motor RE160
Pressure differential (△P）(bar)	170
Oil flow (Q) (I/min)	67
Output speed (n) (min-1)	3
Max.achievable torque (Md) (Nm)	42279
