SC045CP0
RealiSlim Stainless Steel Thin Section Bearings
Dimensions: Bore (Inner) Diameter: 4.500"; Outer Diameter: 5.250"; Width (Thickness): 0.375";
![SC045CP0](https://www.bspdbearing.com/wp-content/uploads/2021/05/thin.jpg)
REQUEST FOR QUOTE
Product Attributes
Bearing Type | Ball |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Open |
Cross Section | 3/8" x 3/8" |
Part Number | SC045CP0 |
For Shaft Diameter | 4.500" |
Bore Dia (d) | 4.500" |
Bore Dia Tolerance | -0.0008"– 0" |
For Housing ID | 5.250" |
Outer Dia (D) | 5.250" |
Outer Dia Tolerance | -0.0008"– 0" |
Width (B) | 0.375" |
Width Tolerance | +.000 –.005" |
Land dia.L1 | 4.777" |
Land dia.L2 | 4.973" |
Ring Material | Aisi440c Stainless Steel |
Ball Material | Aisi440c Stainless Steel |
Cage Material | Brass |
Dynamic radial (lbs) | 1143 |
Static radial (lbs) | 2340 |
Lubrication | Lubricated |
Shaft Mount Type | Press Fit |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
Radial Clearance | 0.0000 – 0.0005" |
RoHS | Compliant |
Weight (lbs) | 0.480 |

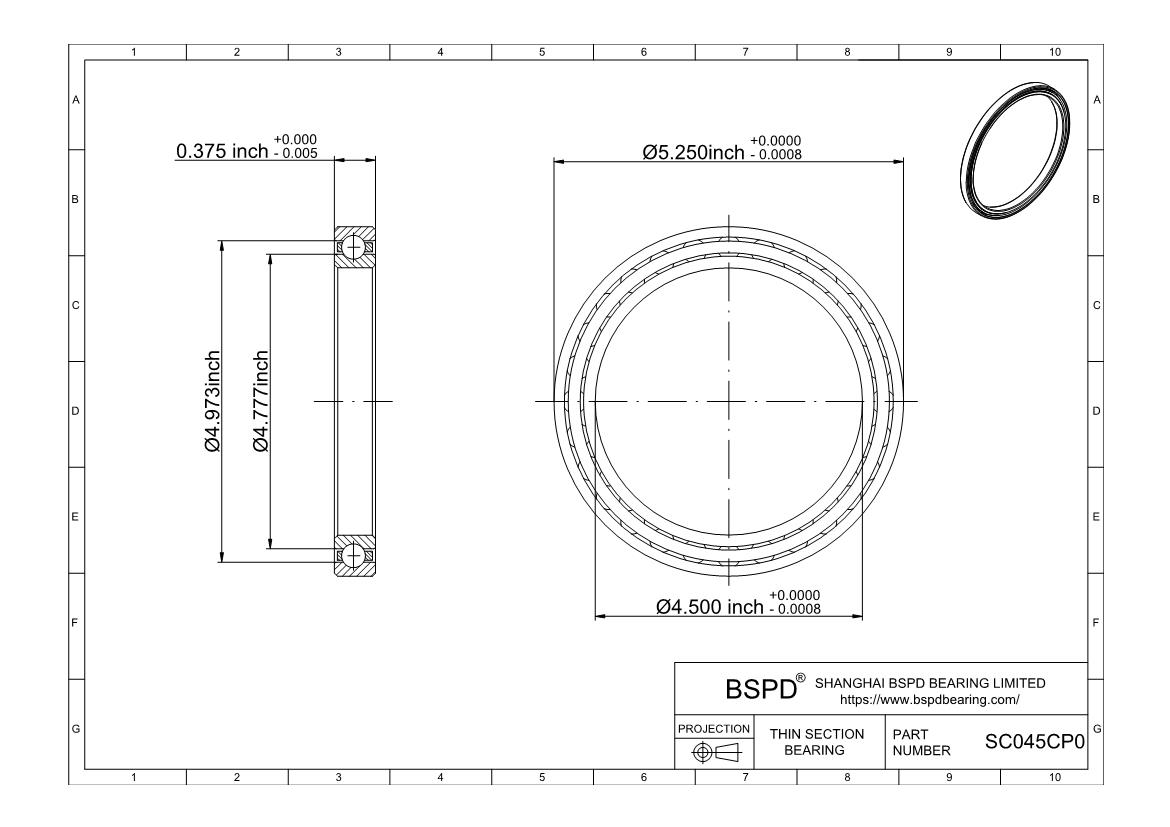

![SC045CP0](/wp-content/uploads/pdf/SC045CP0/1.jpg)
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings SC045CP0 ? RealiSlim Stainless Steel Thin Section Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
