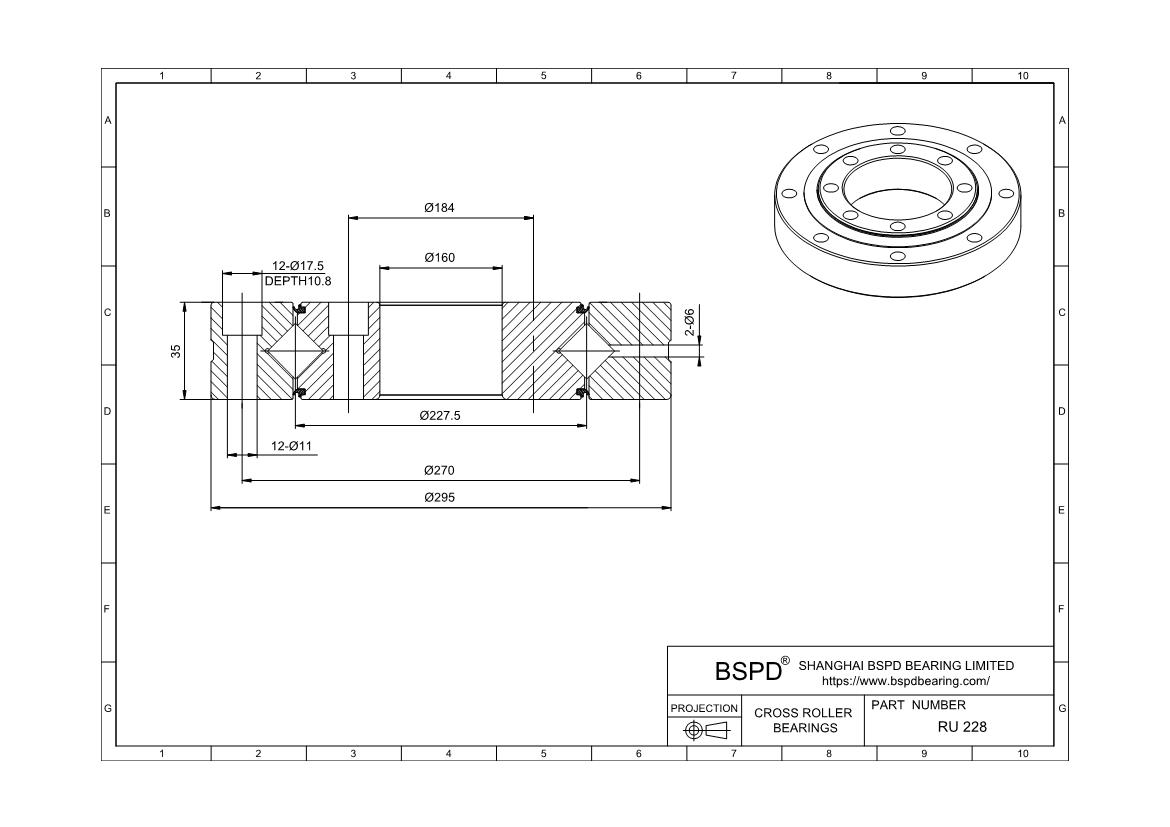

RU228UU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 160 mm； Outer Diameter: 295 mm； Width (Thickness): 35 mm;

RU228UU
REQUEST FOR QUOTE
* *
Send
Product Attributes
THK Part Number RU228UU
IKO Part Number
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Sealed
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 160
Mass(kg) 11.4
Bore Dia (d) 160
Outer Dia (D) 295
Width (B) 35
Greasing hole(d1) 6
r(min) 2
Shoulder height ds(max) 208
Shoulder height Dh(min) 246
Basic load rating (radial)C kN 104
Basic load rating (radial)Co kN 173
Inner ring PCD1
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
Inner ring Mounting hole
Outer ring PCD2
Outer ring Mounting hole
RU228UU
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings RU228UU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
