RU178UU Crossed Roller TYPE

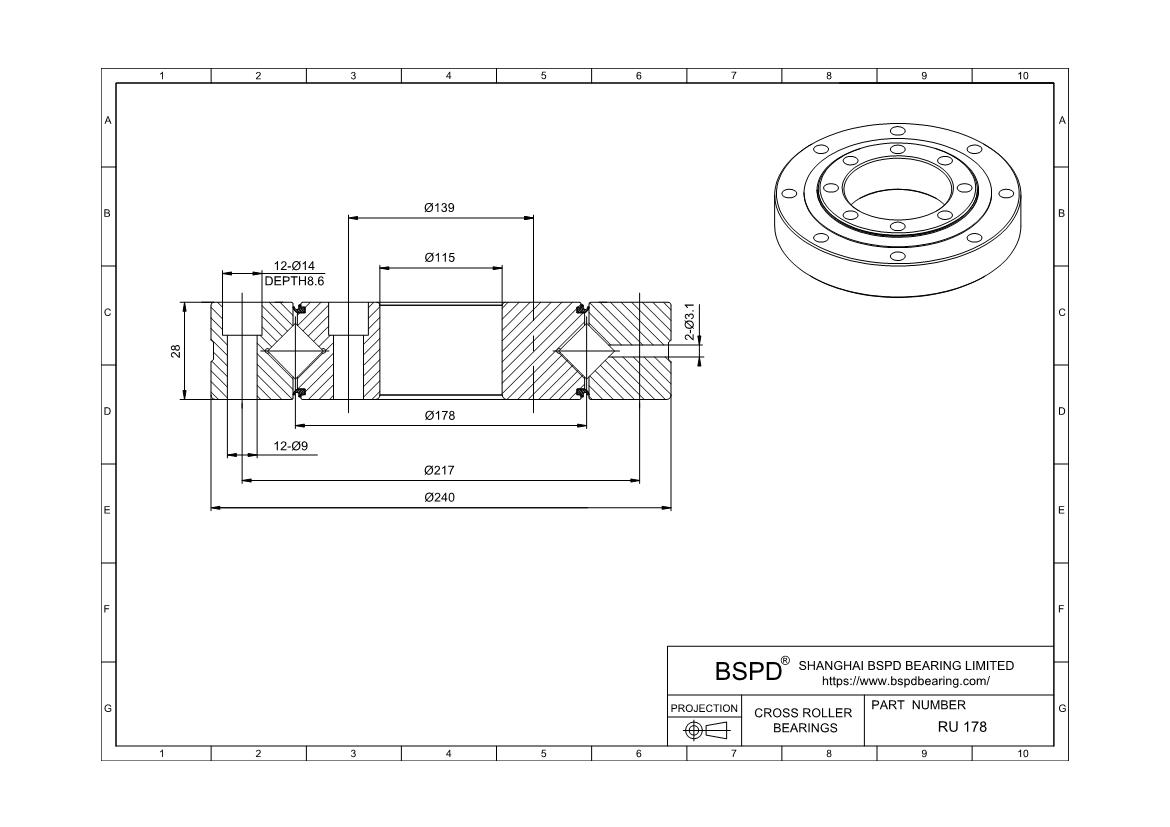

Dimensions: Bore (Inner) Diameter: 115 mm； Outer Diameter: 240 mm； Width (Thickness): 28 mm;

RU178UU
REQUEST FOR QUOTE
* *
Send
Product Attributes
IKO Part Number CRBFV11528ATUU
THK Part Number RU178UU
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Sealed
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 115
Mass(kg) 6.8
Bore Dia (d) 115
Outer Dia (D) 240
Width (B) 28
Greasing hole(d1)
r(min)
Shoulder height ds(max)
Shoulder height Dh(min)
Basic load rating (radial)C kN 80.3
Basic load rating (radial)Co kN 135
Inner ring PCD1 139
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
Inner ring Mounting hole 12-M8 through
Outer ring PCD2 217
Outer ring Mounting hole 12-φ9 through φ14 counter bore depth 13.5
RU178UU
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
